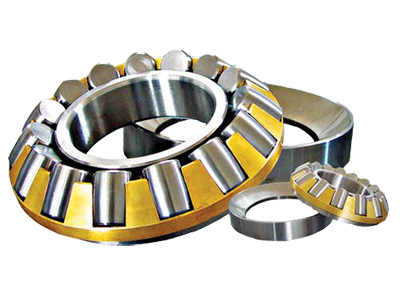

Thrust bearings are designed to support a high axial load while doing this (parallel to the shaft). Different kinds of thrust bearings are used to support different amounts of axial load. Thrust ball bearings are used in applications that use little axial load. Spherical roller thrust bearings are used in applications that require high axial load, and can also support shafts that are out of alignment.
Thrust bearings
Generally, thrust bearings are composed of two washers (raceways) in which those for ball bearings may be grooved, and the rolling elements.

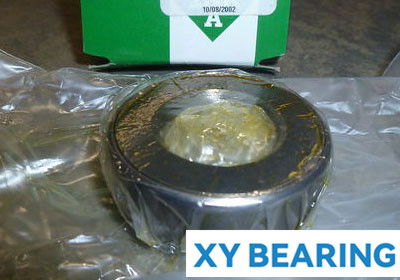

D17-A1_Thrust ball bearings
D17-A1_Thrust ball bearings_INA Dimensions: 38.1 mm x 64.643 mm x 15.99 mm, Limiting Speed:34 kN r/min, Reference speed:81 kNr/min.
- Brand: INA
- Inside Diameter: 38.1 mm
- Outside Diameter: 64.643 mm
- Width: 15.99 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 81 kN
53413_Thrust ball bearings
53413_Thrust ball bearings_NSK Dimensions: 65 mm x 140 mm x 60.2 mm, Limiting Speed:234 kN r/min, Reference speed:495 kNr/min.
- Brand: NSK
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 60.2 mm
- Basic dynamic load rating: 234 kN
- Basic static load rating: 495 kN
53311_Thrust ball bearings
53311_Thrust ball bearings_NSK Dimensions: 55 mm x 105 mm x 39.3 mm, Limiting Speed:115 kN r/min, Reference speed:244 kNr/min.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 105 mm
- Width: 39.3 mm
- Basic dynamic load rating: 115 kN
- Basic static load rating: 244 kN
53326XU_Thrust ball bearings
53326XU_Thrust ball bearings_NSK Dimensions: 130 mm x 225 mm x 86 mm, Limiting Speed:350 kN r/min, Reference speed:1030 kNr/min.
- Brand: NSK
- Inside Diameter: 130 mm
- Outside Diameter: 225 mm
- Width: 86 mm
- Basic dynamic load rating: 350 kN
- Basic static load rating: 1030 kN
53226XU_Thrust ball bearings
53226XU_Thrust ball bearings_NSK Dimensions: 130 mm x 190 mm x 53 mm, Limiting Speed:183 kN r/min, Reference speed:550 kNr/min.
- Brand: NSK
- Inside Diameter: 130 mm
- Outside Diameter: 190 mm
- Width: 53 mm
- Basic dynamic load rating: 183 kN
- Basic static load rating: 550 kN
53424XU_Thrust ball bearings
53424XU_Thrust ball bearings_NSK Dimensions: 120 mm x 250 mm x 118 mm, Limiting Speed:480 kN r/min, Reference speed:1400 kNr/min.
- Brand: NSK
- Inside Diameter: 120 mm
- Outside Diameter: 250 mm
- Width: 118 mm
- Basic dynamic load rating: 480 kN
- Basic static load rating: 1400 kN
53324XU_Thrust ball bearings
53324XU_Thrust ball bearings_NSK Dimensions: 120 mm x 210 mm x 80 mm, Limiting Speed:330 kN r/min, Reference speed:930 kNr/min.
- Brand: NSK
- Inside Diameter: 120 mm
- Outside Diameter: 210 mm
- Width: 80 mm
- Basic dynamic load rating: 330 kN
- Basic static load rating: 930 kN
53224U_Thrust ball bearings
53224U_Thrust ball bearings_NSK Dimensions: 120 mm x 170 mm x 46 mm, Limiting Speed:141 kN r/min, Reference speed:430 kNr/min.
- Brand: NSK
- Inside Diameter: 120 mm
- Outside Diameter: 170 mm
- Width: 46 mm
- Basic dynamic load rating: 141 kN
- Basic static load rating: 430 kN
53422XU_Thrust ball bearings
53422XU_Thrust ball bearings_NSK Dimensions: 110 mm x 230 mm x 109 mm, Limiting Speed:415 kN r/min, Reference speed:1150 kNr/min.
- Brand: NSK
- Inside Diameter: 110 mm
- Outside Diameter: 230 mm
- Width: 109 mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 1150 kN
53322XU_Thrust ball bearings
53322XU_Thrust ball bearings_NSK Dimensions: 110 mm x 190 mm x 72 mm, Limiting Speed:282 kN r/min, Reference speed:755 kNr/min.
- Brand: NSK
- Inside Diameter: 110 mm
- Outside Diameter: 190 mm
- Width: 72 mm
- Basic dynamic load rating: 282 kN
- Basic static load rating: 755 kN
