NSK 53422XU Thrust ball bearings
Also known as : 53422XU
- Inside Diameter: 110 mm
- Outside Diameter: 230 mm
- Width: 109 mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 1150 kN
NSK 53422XU

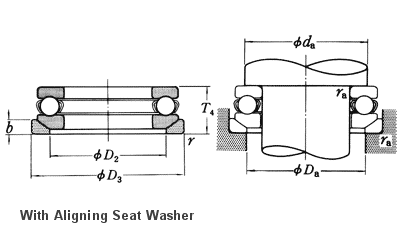

NSK 53422XU details
| model | 53422XU |
|---|---|
| d | 110 mm |
| D | 230 mm |
| T3 | 99.7 mm |
| T4 | 109 mm |
| d1 | 225 mm |
| D1 | 113 mm |
| D2 | 170 mm |
| D3 | 240 mm |
| b | 29 mm |
| rmin. | 3 mm |
| Ca | 415000 N |
| C0a | 1150000 N |
| Limiting speeds | 630 min-1 (Grease) |
| Limiting speeds | 950 min-1 (Oil) |
| da | 181 mm |
| Da | 159 mm |
| ra | 2.5 mm |
| Mass | 24.3 kg (approx.) |
NSK 53422XU bearing cross reference
D17-A1
110 mmx 230 mmx109 mm
53413
110 mmx 230 mmx109 mm
53311
110 mmx 230 mmx109 mm
53326XU
110 mmx 230 mmx109 mm
53226XU
110 mmx 230 mmx109 mm
53424XU
110 mmx 230 mmx109 mm
53324XU
110 mmx 230 mmx109 mm
53224U
110 mmx 230 mmx109 mm
53422XU
110 mmx 230 mmx109 mm
53322XU
110 mmx 230 mmx109 mm
53222U
110 mmx 230 mmx109 mm
