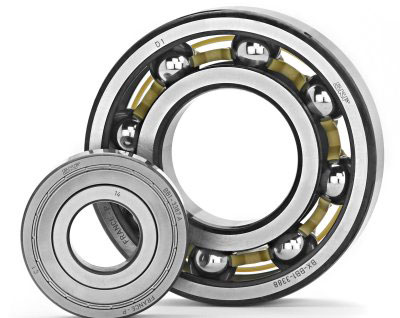

Ball bearings come in a wide variety of types, designs, series and sizes. Ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the moving parts of the bearing. A ball bearing can be highly effective at reducing friction between two parts that need to move freely.
Brand: SKF, NSK, FAG, INA, NTN, TIMKEN, KAYDON, NMB, DEBOT

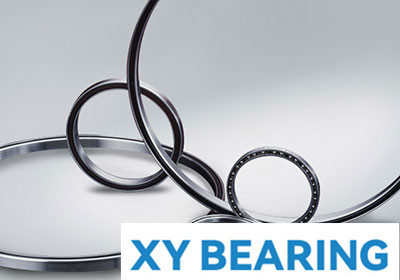

NBX20325 _Thin walled ball bearings
NBX20325 _Thin walled ball bearings_NSK Dimensions: 203.2 mm x 254 mm x 25.4 mm, Limiting Speed: 47.5 kN r/min, Reference speed: 66.5 kNr/min.
- Brand: NSK
- Inside Diameter: 203.2 mm
- Outside Diameter: 254 mm
- Width: 25.4 mm
- Basic dynamic load rating: 47.5 kN
- Basic static load rating: 66.5 kN
NBX19025 _Thin walled ball bearings
NBX19025 _Thin walled ball bearings_NSK Dimensions: 190.5 mm x 241.3 mm x 25.4 mm, Limiting Speed: 46 kN r/min, Reference speed: 61.5 kNr/min.
- Brand: NSK
- Inside Diameter: 190.5 mm
- Outside Diameter: 241.3 mm
- Width: 25.4 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 61.5 kN
NBX17719 _Thin walled ball bearings
NBX17719 _Thin walled ball bearings_NSK Dimensions: 177.8 mm x 215.9 mm x 19.05 mm, Limiting Speed: 29.8 kN r/min, Reference speed: 43.5 kNr/min.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 215.9 mm
- Width: 19.05 mm
- Basic dynamic load rating: 29.8 kN
- Basic static load rating: 43.5 kN
NBX17709 _Thin walled ball bearings
NBX17709 _Thin walled ball bearings_NSK Dimensions: 177.8 mm x 196.85 mm x 9.525 mm, Limiting Speed: 16.5 kN r/min, Reference speed: 21.3 kNr/min.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 196.85 mm
- Width: 9.525 mm
- Basic dynamic load rating: 16.5 kN
- Basic static load rating: 21.3 kN
NBX17707 _Thin walled ball bearings
NBX17707 _Thin walled ball bearings_NSK Dimensions: 177.8 mm x 193.675 mm x 7.938 mm, Limiting Speed: 8.6 kN r/min, Reference speed: 18.4 kNr/min.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 193.675 mm
- Width: 7.938 mm
- Basic dynamic load rating: 8.6 kN
- Basic static load rating: 18.4 kN
NBX17706 _Thin walled ball bearings
NBX17706 _Thin walled ball bearings_NSK Dimensions: 177.8 mm x 190.5 mm x 6.35 mm, Limiting Speed: 6.05 kN r/min, Reference speed: 14.1 kNr/min.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 190.5 mm
- Width: 6.35 mm
- Basic dynamic load rating: 6.05 kN
- Basic static load rating: 14.1 kN
NBX16525 _Thin walled ball bearings
NBX16525 _Thin walled ball bearings_NSK Dimensions: 165.1 mm x 215.9 mm x 25.4 mm, Limiting Speed: 43.5 kN r/min, Reference speed: 53.5 kNr/min.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 215.9 mm
- Width: 25.4 mm
- Basic dynamic load rating: 43.5 kN
- Basic static load rating: 53.5 kN
NBX16519 _Thin walled ball bearings
NBX16519 _Thin walled ball bearings_NSK Dimensions: 165.1 mm x 203.2 mm x 19.05 mm, Limiting Speed: 29 kN r/min, Reference speed: 40.5 kNr/min.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 203.2 mm
- Width: 19.05 mm
- Basic dynamic load rating: 29 kN
- Basic static load rating: 40.5 kN
NBX16512 _Thin walled ball bearings
NBX16512 _Thin walled ball bearings_NSK Dimensions: 165.1 mm x 190.5 mm x 12.7 mm, Limiting Speed: 16.1 kN r/min, Reference speed: 26.6 kNr/min.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 190.5 mm
- Width: 12.7 mm
- Basic dynamic load rating: 16.1 kN
- Basic static load rating: 26.6 kN
NBX16509 _Thin walled ball bearings
NBX16509 _Thin walled ball bearings_NSK Dimensions: 165.1 mm x 184.15 mm x 9.525 mm, Limiting Speed: 10.6 kN r/min, Reference speed: 19.8 kNr/min.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 184.15 mm
- Width: 9.525 mm
- Basic dynamic load rating: 10.6 kN
- Basic static load rating: 19.8 kN
