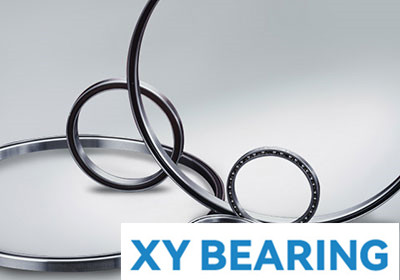

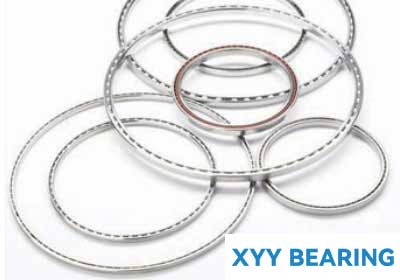

Xin You Ya Bearing have a wide range of thin section ball bearings in stock, including metric and inch designs; Deep groove ball bearings, Four-point contact bearings and Angular contact ball bearings. They are:
Brand: KAYDON, TIMKEN, SKF, NSK, INA
Metric: 6800, 6900, 8 mm, 13 mm, 20 mm, 2.5 mm series
Open bearings: KAA, KA, KB, KC, KD, KF, KG
Sealed bearings: JHA, JA, JB, JU, JG
Stainless steel bearings: SAA, SA, SB, SC, SD, SF, SG
NBX20325 -Thin walled ball bearings
NSK NBX20325 Thin walled ball bearings, In stock, Dimensions: 203.2 mm x 254 mm x 25.4 mm, Basic dynamic load rating: 47.5 kN, Static load rating: 66.5 kN.
- Brand: NSK
- Inside Diameter: 203.2 mm
- Outside Diameter: 254 mm
- Width: 25.4 mm
- Basic dynamic load rating: 47.5 kN
- Basic static load rating: 66.5 kN
NBX19025 -Thin walled ball bearings
NSK NBX19025 Thin walled ball bearings, In stock, Dimensions: 190.5 mm x 241.3 mm x 25.4 mm, Basic dynamic load rating: 46 kN, Static load rating: 61.5 kN.
- Brand: NSK
- Inside Diameter: 190.5 mm
- Outside Diameter: 241.3 mm
- Width: 25.4 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 61.5 kN
NBX17719 -Thin walled ball bearings
NSK NBX17719 Thin walled ball bearings, In stock, Dimensions: 177.8 mm x 215.9 mm x 19.05 mm, Basic dynamic load rating: 29.8 kN, Static load rating: 43.5 kN.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 215.9 mm
- Width: 19.05 mm
- Basic dynamic load rating: 29.8 kN
- Basic static load rating: 43.5 kN
NBX17709 -Thin walled ball bearings
NSK NBX17709 Thin walled ball bearings, In stock, Dimensions: 177.8 mm x 196.85 mm x 9.525 mm, Basic dynamic load rating: 16.5 kN, Static load rating: 21.3 kN.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 196.85 mm
- Width: 9.525 mm
- Basic dynamic load rating: 16.5 kN
- Basic static load rating: 21.3 kN
NBX17707 -Thin walled ball bearings
NSK NBX17707 Thin walled ball bearings, In stock, Dimensions: 177.8 mm x 193.675 mm x 7.938 mm, Basic dynamic load rating: 8.6 kN, Static load rating: 18.4 kN.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 193.675 mm
- Width: 7.938 mm
- Basic dynamic load rating: 8.6 kN
- Basic static load rating: 18.4 kN
NBX17706 -Thin walled ball bearings
NSK NBX17706 Thin walled ball bearings, In stock, Dimensions: 177.8 mm x 190.5 mm x 6.35 mm, Basic dynamic load rating: 6.05 kN, Static load rating: 14.1 kN.
- Brand: NSK
- Inside Diameter: 177.8 mm
- Outside Diameter: 190.5 mm
- Width: 6.35 mm
- Basic dynamic load rating: 6.05 kN
- Basic static load rating: 14.1 kN
NBX16525 -Thin walled ball bearings
NSK NBX16525 Thin walled ball bearings, In stock, Dimensions: 165.1 mm x 215.9 mm x 25.4 mm, Basic dynamic load rating: 43.5 kN, Static load rating: 53.5 kN.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 215.9 mm
- Width: 25.4 mm
- Basic dynamic load rating: 43.5 kN
- Basic static load rating: 53.5 kN
NBX16519 -Thin walled ball bearings
NSK NBX16519 Thin walled ball bearings, In stock, Dimensions: 165.1 mm x 203.2 mm x 19.05 mm, Basic dynamic load rating: 29 kN, Static load rating: 40.5 kN.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 203.2 mm
- Width: 19.05 mm
- Basic dynamic load rating: 29 kN
- Basic static load rating: 40.5 kN
NBX16512 -Thin walled ball bearings
NSK NBX16512 Thin walled ball bearings, In stock, Dimensions: 165.1 mm x 190.5 mm x 12.7 mm, Basic dynamic load rating: 16.1 kN, Static load rating: 26.6 kN.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 190.5 mm
- Width: 12.7 mm
- Basic dynamic load rating: 16.1 kN
- Basic static load rating: 26.6 kN
NBX16509 -Thin walled ball bearings
NSK NBX16509 Thin walled ball bearings, In stock, Dimensions: 165.1 mm x 184.15 mm x 9.525 mm, Basic dynamic load rating: 10.6 kN, Static load rating: 19.8 kN.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 184.15 mm
- Width: 9.525 mm
- Basic dynamic load rating: 10.6 kN
- Basic static load rating: 19.8 kN
NBX16507 -Thin walled ball bearings
NSK NBX16507 Thin walled ball bearings, In stock, Dimensions: 165.1 mm x 180.975 mm x 7.938 mm, Basic dynamic load rating: 8.35 kN, Static load rating: 17.1 kN.
- Brand: NSK
- Inside Diameter: 165.1 mm
- Outside Diameter: 180.975 mm
- Width: 7.938 mm
- Basic dynamic load rating: 8.35 kN
- Basic static load rating: 17.1 kN
NBX15225 -Thin walled ball bearings
NSK NBX15225 Thin walled ball bearings, In stock, Dimensions: 152.4 mm x 203.2 mm x 25.4 mm, Basic dynamic load rating: 43 kN, Static load rating: 51 kN.
- Brand: NSK
- Inside Diameter: 152.4 mm
- Outside Diameter: 203.2 mm
- Width: 25.4 mm
- Basic dynamic load rating: 43 kN
- Basic static load rating: 51 kN
NBX15219 -Thin walled ball bearings
NSK NBX15219 Thin walled ball bearings, In stock, Dimensions: 152.4 mm x 190.5 mm x 19.05 mm, Basic dynamic load rating: 28.2 kN, Static load rating: 37.5 kN.
- Brand: NSK
- Inside Diameter: 152.4 mm
- Outside Diameter: 190.5 mm
- Width: 19.05 mm
- Basic dynamic load rating: 28.2 kN
- Basic static load rating: 37.5 kN
NBX15212 -Thin walled ball bearings
NSK NBX15212 Thin walled ball bearings, In stock, Dimensions: 152.4 mm x 177.8 mm x 12.7 mm, Basic dynamic load rating: 15.7 kN, Static load rating: 24.6 kN.
- Brand: NSK
- Inside Diameter: 152.4 mm
- Outside Diameter: 177.8 mm
- Width: 12.7 mm
- Basic dynamic load rating: 15.7 kN
- Basic static load rating: 24.6 kN
NBX15209 -Thin walled ball bearings
NSK NBX15209 Thin walled ball bearings, In stock, Dimensions: 152.4 mm x 171.45 mm x 9.525 mm, Basic dynamic load rating: 10.3 kN, Static load rating: 18.3 kN.
- Brand: NSK
- Inside Diameter: 152.4 mm
- Outside Diameter: 171.45 mm
- Width: 9.525 mm
- Basic dynamic load rating: 10.3 kN
- Basic static load rating: 18.3 kN
NBX15207 -Thin walled ball bearings
NSK NBX15207 Thin walled ball bearings, In stock, Dimensions: 152.4 mm x 168.275 mm x 7.938 mm, Basic dynamic load rating: 8.1 kN, Static load rating: 15.8 kN.
- Brand: NSK
- Inside Diameter: 152.4 mm
- Outside Diameter: 168.275 mm
- Width: 7.938 mm
- Basic dynamic load rating: 8.1 kN
- Basic static load rating: 15.8 kN
NBX12719 -Thin walled ball bearings
NSK NBX12719 Thin walled ball bearings, In stock, Dimensions: 127 mm x 165.1 mm x 19.05 mm, Basic dynamic load rating: 26.5 kN, Static load rating: 31.5 kN.
- Brand: NSK
- Inside Diameter: 127 mm
- Outside Diameter: 165.1 mm
- Width: 19.05 mm
- Basic dynamic load rating: 26.5 kN
- Basic static load rating: 31.5 kN
NBX12712 -Thin walled ball bearings
NSK NBX12712 Thin walled ball bearings, In stock, Dimensions: 127 mm x 152.4 mm x 12.7 mm, Basic dynamic load rating: 14.7 kN, Static load rating: 20.7 kN.
- Brand: NSK
- Inside Diameter: 127 mm
- Outside Diameter: 152.4 mm
- Width: 12.7 mm
- Basic dynamic load rating: 14.7 kN
- Basic static load rating: 20.7 kN
NBX12709 -Thin walled ball bearings
NSK NBX12709 Thin walled ball bearings, In stock, Dimensions: 127 mm x 146.05 mm x 9.525 mm, Basic dynamic load rating: 9.65 kN, Static load rating: 15.3 kN.
- Brand: NSK
- Inside Diameter: 127 mm
- Outside Diameter: 146.05 mm
- Width: 9.525 mm
- Basic dynamic load rating: 9.65 kN
- Basic static load rating: 15.3 kN
NBX12707 -Thin walled ball bearings
NSK NBX12707 Thin walled ball bearings, In stock, Dimensions: 127 mm x 142.875 mm x 7.938 mm, Basic dynamic load rating: 7.6 kN, Static load rating: 13.2 kN.
- Brand: NSK
- Inside Diameter: 127 mm
- Outside Diameter: 142.875 mm
- Width: 7.938 mm
- Basic dynamic load rating: 7.6 kN
- Basic static load rating: 13.2 kN
