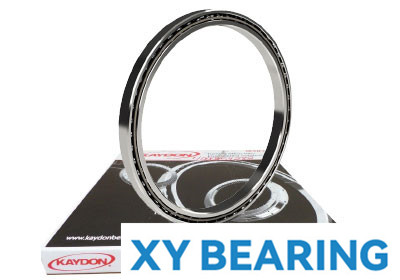

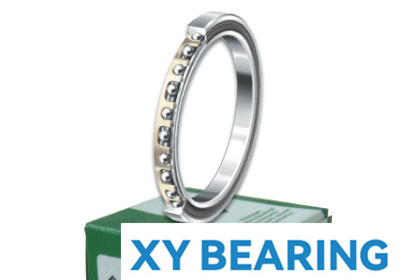

Xin You Ya Bearing have a wide range of thin section ball bearings in stock, including metric and inch designs; Deep groove ball bearings, Four-point contact bearings and Angular contact ball bearings. They are:
Brand: KAYDON, TIMKEN, SKF, NSK, INA
Metric: 6800, 6900, 8 mm, 13 mm, 20 mm, 2.5 mm series
Open bearings: KAA, KA, KB, KC, KD, KF, KG
Sealed bearings: JHA, JA, JB, JU, JG
Stainless steel bearings: SAA, SA, SB, SC, SD, SF, SG
CSXG120 -Thin walled ball bearings
INA CSXG120 Thin walled ball bearings, In stock, Dimensions: 304.8 mm x 355.6 mm x 25.4 mm, Basic dynamic load rating: 74 kN, Static load rating: 147 kN.
- Brand: INA
- Inside Diameter: 304.8 mm
- Outside Diameter: 355.6 mm
- Width: 25.4 mm
- Basic dynamic load rating: 74 kN
- Basic static load rating: 147 kN
S17003AS0 -Thin walled ball bearings
KAYDON S17003AS0 Thin walled ball bearings, In stock, Dimensions: 170 mm x 176 mm x 2.5 mm, Basic dynamic load rating: 1085 N, Static load rating: 1834 N.
- Brand: KAYDON
- Inside Diameter: 170 mm
- Outside Diameter: 176 mm
- Width: 2.5 mm
- Basic dynamic load rating: 1085 N
- Basic static load rating: 1834 N
S16003AS0 -Thin walled ball bearings
KAYDON S16003AS0 Thin walled ball bearings, In stock, Dimensions: 160 mm x 166 mm x 2.5 mm, Basic dynamic load rating: 1045 N, Static load rating: 1727 N.
- Brand: KAYDON
- Inside Diameter: 160 mm
- Outside Diameter: 166 mm
- Width: 2.5 mm
- Basic dynamic load rating: 1045 N
- Basic static load rating: 1727 N
S15003AS0 -Thin walled ball bearings
KAYDON S15003AS0 Thin walled ball bearings, In stock, Dimensions: 150 mm x 156 mm x 2.5 mm, Basic dynamic load rating: 1001 N, Static load rating: 1621 N.
- Brand: KAYDON
- Inside Diameter: 150 mm
- Outside Diameter: 156 mm
- Width: 2.5 mm
- Basic dynamic load rating: 1001 N
- Basic static load rating: 1621 N
S14003AS0 -Thin walled ball bearings
KAYDON S14003AS0 Thin walled ball bearings, In stock, Dimensions: 140 mm x 146 mm x 2.5 mm, Basic dynamic load rating: 956 N, Static load rating: 1514 N.
- Brand: KAYDON
- Inside Diameter: 140 mm
- Outside Diameter: 146 mm
- Width: 2.5 mm
- Basic dynamic load rating: 956 N
- Basic static load rating: 1514 N
S13003AS0 -Thin walled ball bearings
KAYDON S13003AS0 Thin walled ball bearings, In stock, Dimensions: 130 mm x 136 mm x 2.5 mm, Basic dynamic load rating: 912 N, Static load rating: 1407 N.
- Brand: KAYDON
- Inside Diameter: 130 mm
- Outside Diameter: 136 mm
- Width: 2.5 mm
- Basic dynamic load rating: 912 N
- Basic static load rating: 1407 N
S12003AS0 -Thin walled ball bearings
KAYDON S12003AS0 Thin walled ball bearings, In stock, Dimensions: 120 mm x 126 mm x 2.5 mm, Basic dynamic load rating: 863 N, Static load rating: 1290 N.
- Brand: KAYDON
- Inside Diameter: 120 mm
- Outside Diameter: 126 mm
- Width: 2.5 mm
- Basic dynamic load rating: 863 N
- Basic static load rating: 1290 N
S11003AS0 -Thin walled ball bearings
KAYDON S11003AS0 Thin walled ball bearings, In stock, Dimensions: 110 mm x 116 mm x 2.5 mm, Basic dynamic load rating: 814 N, Static load rating: 1183 N.
- Brand: KAYDON
- Inside Diameter: 110 mm
- Outside Diameter: 116 mm
- Width: 2.5 mm
- Basic dynamic load rating: 814 N
- Basic static load rating: 1183 N
S10003AS0 -Thin walled ball bearings
KAYDON S10003AS0 Thin walled ball bearings, In stock, Dimensions: 100 mm x 106 mm x 2.5 mm, Basic dynamic load rating: 765 N, Static load rating: 1077 N.
- Brand: KAYDON
- Inside Diameter: 100 mm
- Outside Diameter: 106 mm
- Width: 2.5 mm
- Basic dynamic load rating: 765 N
- Basic static load rating: 1077 N
S09003AS0 -Thin walled ball bearings
KAYDON S09003AS0 Thin walled ball bearings, In stock, Dimensions: 90 mm x 96 mm x 2.5 mm, Basic dynamic load rating: 716 N, Static load rating: 970 N.
- Brand: KAYDON
- Inside Diameter: 90 mm
- Outside Diameter: 96 mm
- Width: 2.5 mm
- Basic dynamic load rating: 716 N
- Basic static load rating: 970 N
S08003AS0 -Thin walled ball bearings
KAYDON S08003AS0 Thin walled ball bearings, In stock, Dimensions: 80 mm x 86 mm x 2.5 mm, Basic dynamic load rating: 663 N, Static load rating: 863 N.
- Brand: KAYDON
- Inside Diameter: 80 mm
- Outside Diameter: 86 mm
- Width: 2.5 mm
- Basic dynamic load rating: 663 N
- Basic static load rating: 863 N
S07403AS0 -Thin walled ball bearings
KAYDON S07403AS0 Thin walled ball bearings, In stock, Dimensions: 74 mm x 80 mm x 2.5 mm, Basic dynamic load rating: 632 N, Static load rating: 799 N.
- Brand: KAYDON
- Inside Diameter: 74 mm
- Outside Diameter: 80 mm
- Width: 2.5 mm
- Basic dynamic load rating: 632 N
- Basic static load rating: 799 N
S07003AS0 -Thin walled ball bearings
KAYDON S07003AS0 Thin walled ball bearings, In stock, Dimensions: 70 mm x 76 mm x 2.5 mm, Basic dynamic load rating: 609 N, Static load rating: 756 N.
- Brand: KAYDON
- Inside Diameter: 70 mm
- Outside Diameter: 76 mm
- Width: 2.5 mm
- Basic dynamic load rating: 609 N
- Basic static load rating: 756 N
S06003AS0 -Thin walled ball bearings
KAYDON S06003AS0 Thin walled ball bearings, In stock, Dimensions: 60 mm x 66 mm x 2.5 mm, Basic dynamic load rating: 552 N, Static load rating: 649 N.
- Brand: KAYDON
- Inside Diameter: 60 mm
- Outside Diameter: 66 mm
- Width: 2.5 mm
- Basic dynamic load rating: 552 N
- Basic static load rating: 649 N
S03503AS0 -Thin walled ball bearings
KAYDON S03503AS0 Thin walled ball bearings, In stock, Dimensions: 35 mm x 41 mm x 2.5 mm, Basic dynamic load rating: 383 N, Static load rating: 382 N.
- Brand: KAYDON
- Inside Diameter: 35 mm
- Outside Diameter: 41 mm
- Width: 2.5 mm
- Basic dynamic load rating: 383 N
- Basic static load rating: 382 N
K36020XP0 -Thin walled ball bearings
KAYDON K36020XP0 Thin walled ball bearings, In stock, Dimensions: 360 mm x 400 mm x 20 mm, Basic dynamic load rating: 44306 N, Static load rating: 210372 N.
- Brand: KAYDON
- Inside Diameter: 360 mm
- Outside Diameter: 400 mm
- Width: 20 mm
- Basic dynamic load rating: 44306 N
- Basic static load rating: 210372 N
K34020XP0 -Thin walled ball bearings
KAYDON K34020XP0 Thin walled ball bearings, In stock, Dimensions: 340 mm x 380 mm x 20 mm, Basic dynamic load rating: 43032 N, Static load rating: 199673 N.
- Brand: KAYDON
- Inside Diameter: 340 mm
- Outside Diameter: 380 mm
- Width: 20 mm
- Basic dynamic load rating: 43032 N
- Basic static load rating: 199673 N
K32020XP0 -Thin walled ball bearings
KAYDON K32020XP0 Thin walled ball bearings, In stock, Dimensions: 320 mm x 360 mm x 20 mm, Basic dynamic load rating: 41727 N, Static load rating: 188974 N.
- Brand: KAYDON
- Inside Diameter: 320 mm
- Outside Diameter: 360 mm
- Width: 20 mm
- Basic dynamic load rating: 41727 N
- Basic static load rating: 188974 N
K30020XP0 -Thin walled ball bearings
KAYDON K30020XP0 Thin walled ball bearings, In stock, Dimensions: 300 mm x 340 mm x 20 mm, Basic dynamic load rating: 40394 N, Static load rating: 178275 N.
- Brand: KAYDON
- Inside Diameter: 300 mm
- Outside Diameter: 340 mm
- Width: 20 mm
- Basic dynamic load rating: 40394 N
- Basic static load rating: 178275 N
K25020XP0 -Thin walled ball bearings
KAYDON K25020XP0 Thin walled ball bearings, In stock, Dimensions: 250 mm x 290 mm x 20 mm, Basic dynamic load rating: 36589 N, Static load rating: 149757 N.
- Brand: KAYDON
- Inside Diameter: 250 mm
- Outside Diameter: 290 mm
- Width: 20 mm
- Basic dynamic load rating: 36589 N
- Basic static load rating: 149757 N
