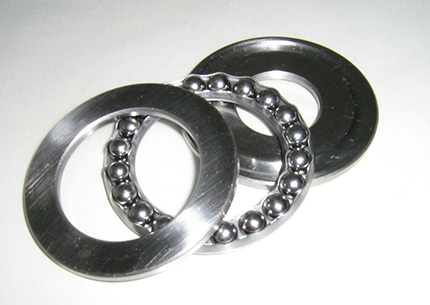

Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They are designed to accommodate axial loads only and must not be subjected to any radial load.
Brand: SKF, NSK, FAG, INA, TIMKEN
Thrust deep groove ball bearings
Thrust angular contact ball bearings

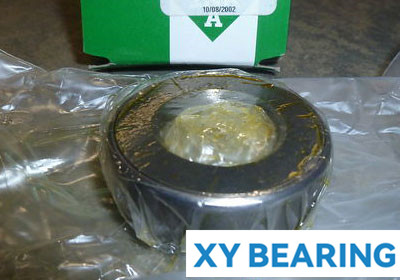

D17-A1-Thrust ball bearings
INA D17-A1 Thrust ball bearings, In stock, Dimensions: 38.1 mm x 64.643 mm x 15.99 mm, Basic dynamic load rating: 34 kN, Static load rating: 81 kN.
- Brand: INA
- Inside Diameter: 38.1 mm
- Outside Diameter: 64.643 mm
- Width: 15.99 mm
- Basic dynamic load rating: 34 kN
- Basic static load rating: 81 kN

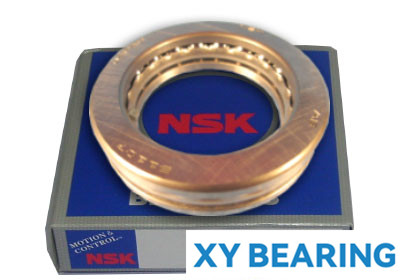

53413-Thrust ball bearings
NSK 53413 Thrust ball bearings, In stock, Dimensions: 65 mm x 140 mm x 60.2 mm, Basic dynamic load rating: 234 kN, Static load rating: 495 kN.
- Brand: NSK
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 60.2 mm
- Basic dynamic load rating: 234 kN
- Basic static load rating: 495 kN
53311-Thrust ball bearings
NSK 53311 Thrust ball bearings, In stock, Dimensions: 55 mm x 105 mm x 39.3 mm, Basic dynamic load rating: 115 kN, Static load rating: 244 kN.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 105 mm
- Width: 39.3 mm
- Basic dynamic load rating: 115 kN
- Basic static load rating: 244 kN
53326XU-Thrust ball bearings
NSK 53326XU Thrust ball bearings, In stock, Dimensions: 130 mm x 225 mm x 86 mm, Basic dynamic load rating: 350 kN, Static load rating: 1030 kN.
- Brand: NSK
- Inside Diameter: 130 mm
- Outside Diameter: 225 mm
- Width: 86 mm
- Basic dynamic load rating: 350 kN
- Basic static load rating: 1030 kN
53226XU-Thrust ball bearings
NSK 53226XU Thrust ball bearings, In stock, Dimensions: 130 mm x 190 mm x 53 mm, Basic dynamic load rating: 183 kN, Static load rating: 550 kN.
- Brand: NSK
- Inside Diameter: 130 mm
- Outside Diameter: 190 mm
- Width: 53 mm
- Basic dynamic load rating: 183 kN
- Basic static load rating: 550 kN
53424XU-Thrust ball bearings
NSK 53424XU Thrust ball bearings, In stock, Dimensions: 120 mm x 250 mm x 118 mm, Basic dynamic load rating: 480 kN, Static load rating: 1400 kN.
- Brand: NSK
- Inside Diameter: 120 mm
- Outside Diameter: 250 mm
- Width: 118 mm
- Basic dynamic load rating: 480 kN
- Basic static load rating: 1400 kN
53324XU-Thrust ball bearings
NSK 53324XU Thrust ball bearings, In stock, Dimensions: 120 mm x 210 mm x 80 mm, Basic dynamic load rating: 330 kN, Static load rating: 930 kN.
- Brand: NSK
- Inside Diameter: 120 mm
- Outside Diameter: 210 mm
- Width: 80 mm
- Basic dynamic load rating: 330 kN
- Basic static load rating: 930 kN
53224U-Thrust ball bearings
NSK 53224U Thrust ball bearings, In stock, Dimensions: 120 mm x 170 mm x 46 mm, Basic dynamic load rating: 141 kN, Static load rating: 430 kN.
- Brand: NSK
- Inside Diameter: 120 mm
- Outside Diameter: 170 mm
- Width: 46 mm
- Basic dynamic load rating: 141 kN
- Basic static load rating: 430 kN
53422XU-Thrust ball bearings
NSK 53422XU Thrust ball bearings, In stock, Dimensions: 110 mm x 230 mm x 109 mm, Basic dynamic load rating: 415 kN, Static load rating: 1150 kN.
- Brand: NSK
- Inside Diameter: 110 mm
- Outside Diameter: 230 mm
- Width: 109 mm
- Basic dynamic load rating: 415 kN
- Basic static load rating: 1150 kN
53322XU-Thrust ball bearings
NSK 53322XU Thrust ball bearings, In stock, Dimensions: 110 mm x 190 mm x 72 mm, Basic dynamic load rating: 282 kN, Static load rating: 755 kN.
- Brand: NSK
- Inside Diameter: 110 mm
- Outside Diameter: 190 mm
- Width: 72 mm
- Basic dynamic load rating: 282 kN
- Basic static load rating: 755 kN
53222U-Thrust ball bearings
NSK 53222U Thrust ball bearings, In stock, Dimensions: 110 mm x 160 mm x 45 mm, Basic dynamic load rating: 136 kN, Static load rating: 395 kN.
- Brand: NSK
- Inside Diameter: 110 mm
- Outside Diameter: 160 mm
- Width: 45 mm
- Basic dynamic load rating: 136 kN
- Basic static load rating: 395 kN
53420XU-Thrust ball bearings
NSK 53420XU Thrust ball bearings, In stock, Dimensions: 100 mm x 210 mm x 98 mm, Basic dynamic load rating: 370 kN, Static load rating: 985 kN.
- Brand: NSK
- Inside Diameter: 100 mm
- Outside Diameter: 210 mm
- Width: 98 mm
- Basic dynamic load rating: 370 kN
- Basic static load rating: 985 kN
53320U-Thrust ball bearings
NSK 53320U Thrust ball bearings, In stock, Dimensions: 100 mm x 170 mm x 64 mm, Basic dynamic load rating: 239 kN, Static load rating: 595 kN.
- Brand: NSK
- Inside Diameter: 100 mm
- Outside Diameter: 170 mm
- Width: 64 mm
- Basic dynamic load rating: 239 kN
- Basic static load rating: 595 kN
53220U-Thrust ball bearings
NSK 53220U Thrust ball bearings, In stock, Dimensions: 100 mm x 150 mm x 45 mm, Basic dynamic load rating: 135 kN, Static load rating: 375 kN.
- Brand: NSK
- Inside Diameter: 100 mm
- Outside Diameter: 150 mm
- Width: 45 mm
- Basic dynamic load rating: 135 kN
- Basic static load rating: 375 kN
53318U-Thrust ball bearings
NSK 53318U Thrust ball bearings, In stock, Dimensions: 90 mm x 155 mm x 59 mm, Basic dynamic load rating: 214 kN, Static load rating: 525 kN.
- Brand: NSK
- Inside Diameter: 90 mm
- Outside Diameter: 155 mm
- Width: 59 mm
- Basic dynamic load rating: 214 kN
- Basic static load rating: 525 kN
53218U-Thrust ball bearings
NSK 53218U Thrust ball bearings, In stock, Dimensions: 90 mm x 135 mm x 42 mm, Basic dynamic load rating: 114 kN, Static load rating: 310 kN.
- Brand: NSK
- Inside Diameter: 90 mm
- Outside Diameter: 135 mm
- Width: 42 mm
- Basic dynamic load rating: 114 kN
- Basic static load rating: 310 kN
53417XU-Thrust ball bearings
NSK 53417XU Thrust ball bearings, In stock, Dimensions: 85 mm x 180 mm x 83 mm, Basic dynamic load rating: 310 kN, Static load rating: 755 kN.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 83 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 755 kN
53317U-Thrust ball bearings
NSK 53317U Thrust ball bearings, In stock, Dimensions: 85 mm x 150 mm x 58 mm, Basic dynamic load rating: 207 kN, Static load rating: 490 kN.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 58 mm
- Basic dynamic load rating: 207 kN
- Basic static load rating: 490 kN
53217U-Thrust ball bearings
NSK 53217U Thrust ball bearings, In stock, Dimensions: 85 mm x 125 mm x 37 mm, Basic dynamic load rating: 96 kN, Static load rating: 264 kN.
- Brand: NSK
- Inside Diameter: 85 mm
- Outside Diameter: 125 mm
- Width: 37 mm
- Basic dynamic load rating: 96 kN
- Basic static load rating: 264 kN
53416U-Thrust ball bearings
NSK 53416U Thrust ball bearings, In stock, Dimensions: 80 mm x 170 mm x 78 mm, Basic dynamic load rating: 272 kN, Static load rating: 620 kN.
- Brand: NSK
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 78 mm
- Basic dynamic load rating: 272 kN
- Basic static load rating: 620 kN
