NSK 53413 Thrust ball bearings
Also known as : 53413
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 60.2 mm
- Basic dynamic load rating: 234 kN
- Basic static load rating: 495 kN
NSK 53413

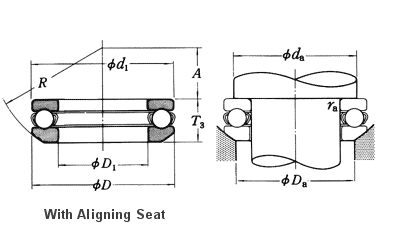

NSK 53413 details
| model | 53413 |
|---|---|
| d | 65 mm |
| D | 140 mm |
| T3 | 60.2 mm |
| d1 | 140 mm |
| D1 | 68 mm |
| rmin. | 2 mm |
| Ca | 234000 N |
| C0a | 495000 N |
| Limiting speeds | 1100 min-1 (Grease) |
| Limiting speeds | 1700 min-1 (Oil) |
| da | 110 mm |
| Da | 95 mm |
| ra | 2 mm |
| Mass | 4.22 kg (approx.) |
NSK 53413 bearing cross reference
D17-A1
65 mmx 140 mmx60.2 mm
53413
65 mmx 140 mmx60.2 mm
53311
65 mmx 140 mmx60.2 mm
53326XU
65 mmx 140 mmx60.2 mm
53226XU
65 mmx 140 mmx60.2 mm
53424XU
65 mmx 140 mmx60.2 mm
53324XU
65 mmx 140 mmx60.2 mm
53224U
65 mmx 140 mmx60.2 mm
53422XU
65 mmx 140 mmx60.2 mm
53322XU
65 mmx 140 mmx60.2 mm
53222U
65 mmx 140 mmx60.2 mm
