INA D17-A1

INA D17-A1 Thrust ball bearings

Also known as : D17-A1

Inside Diameter: 38.1 mm
Outside Diameter: 64.643 mm
Width: 15.99 mm
Basic dynamic load rating: 34 kN
Basic static load rating: 81 kN

INA D17-A1

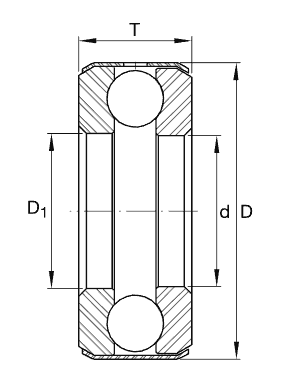

INA D17-A1 details

Number	D17-A1
Type	Thrust ball bearings
d	1 1/2inch
d	38,1mm
D	2,545inch
D	64,643mm
T	0,629inch
T	15,99mm
D₁	1,521inch
m	0,46lbs	Mass
m	209g	Mass
C_a	7700lbf	Basic dynamic load rating, axial
C_a	34000N	Basic dynamic load rating, axial
C_0a	18300lbf	Basic static load rating, axial
C_0a	81000N	Basic static load rating, axial
n_G	28001/min	Limiting speed

INA D17-A1 bearing cross reference

D17-A1
38.1 mmx 64.643 mmx15.99 mm

53413
38.1 mmx 64.643 mmx15.99 mm

53311
38.1 mmx 64.643 mmx15.99 mm

53326XU
38.1 mmx 64.643 mmx15.99 mm

53226XU
38.1 mmx 64.643 mmx15.99 mm

53424XU
38.1 mmx 64.643 mmx15.99 mm

53324XU
38.1 mmx 64.643 mmx15.99 mm

53224U
38.1 mmx 64.643 mmx15.99 mm

53422XU
38.1 mmx 64.643 mmx15.99 mm

53322XU
38.1 mmx 64.643 mmx15.99 mm

53222U
38.1 mmx 64.643 mmx15.99 mm

53420XU
38.1 mmx 64.643 mmx15.99 mm
