NSK 53311 Thrust ball bearings
Also known as : 53311
- Inside Diameter: 55 mm
- Outside Diameter: 105 mm
- Width: 39.3 mm
- Basic dynamic load rating: 115 kN
- Basic static load rating: 244 kN
NSK 53311

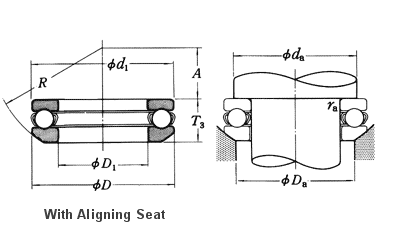

NSK 53311 details
| model | 53311 |
|---|---|
| d | 55 mm |
| D | 105 mm |
| T3 | 39.3 mm |
| d1 | 105 mm |
| D1 | 57 mm |
| rmin. | 1.1 mm |
| Ca | 115000 N |
| C0a | 244000 N |
| Limiting speeds | 1600 min-1 (Grease) |
| Limiting speeds | 2400 min-1 (Oil) |
| da | 85 mm |
| Da | 75 mm |
| ra | 1 mm |
| Mass | 1.45 kg (approx.) |
NSK 53311 bearing cross reference
D17-A1
55 mmx 105 mmx39.3 mm
53413
55 mmx 105 mmx39.3 mm
53311
55 mmx 105 mmx39.3 mm
53326XU
55 mmx 105 mmx39.3 mm
53226XU
55 mmx 105 mmx39.3 mm
53424XU
55 mmx 105 mmx39.3 mm
53324XU
55 mmx 105 mmx39.3 mm
53224U
55 mmx 105 mmx39.3 mm
53422XU
55 mmx 105 mmx39.3 mm
53322XU
55 mmx 105 mmx39.3 mm
53222U
55 mmx 105 mmx39.3 mm
