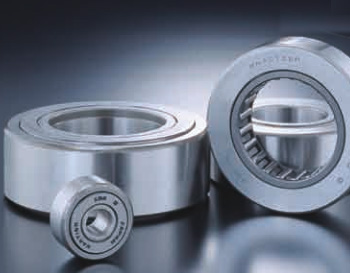

Xin You Ya Bearing supplies support rollers in many different types and brands. We have a wide variety of these bearings in stock from well-renowned brands, such as SKF, IKO INA, etc. Support rollers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring.
Support rollers include separable and non-separable types. These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.

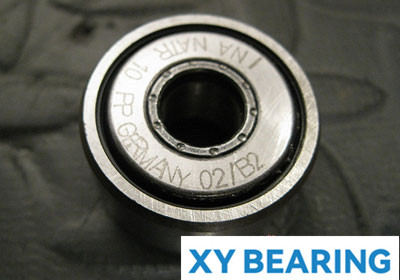

NATR20-Track roller bearings
INA NATR20 Track roller bearings, In stock, Dimensions: 20 mm x 47 mm x 25 mm, Basic dynamic load rating: 15.4 kN, Static load rating: 26 kN.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 25 mm
- Basic dynamic load rating: 15.4 kN
- Basic static load rating: 26 kN
NATR8-Track roller bearings
INA NATR8 Track roller bearings, In stock, Dimensions: 8 mm x 24 mm x 15 mm, Basic dynamic load rating: 5.5 kN, Static load rating: 6.6 kN.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 15 mm
- Basic dynamic load rating: 5.5 kN
- Basic static load rating: 6.6 kN
NA2210-2RSR-Track roller bearings
INA NA2210-2RSR Track roller bearings, In stock, Dimensions: 50 mm x 90 mm x 23 mm, Basic dynamic load rating: 26 kN, Static load rating: 43 kN.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 23 mm
- Basic dynamic load rating: 26 kN
- Basic static load rating: 43 kN
NA2208-2RSR-Track roller bearings
INA NA2208-2RSR Track roller bearings, In stock, Dimensions: 40 mm x 80 mm x 23 mm, Basic dynamic load rating: 26 kN, Static load rating: 41 kN.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 23 mm
- Basic dynamic load rating: 26 kN
- Basic static load rating: 41 kN
NA2207-2RSR-Track roller bearings
INA NA2207-2RSR Track roller bearings, In stock, Dimensions: 35 mm x 72 mm x 23 mm, Basic dynamic load rating: 21.5 kN, Static load rating: 36 kN.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 23 mm
- Basic dynamic load rating: 21.5 kN
- Basic static load rating: 36 kN
NA2206-2RSR-Track roller bearings
INA NA2206-2RSR Track roller bearings, In stock, Dimensions: 30 mm x 62 mm x 20 mm, Basic dynamic load rating: 17.1 kN, Static load rating: 26 kN.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 20 mm
- Basic dynamic load rating: 17.1 kN
- Basic static load rating: 26 kN
NA2205-2RSR-Track roller bearings
INA NA2205-2RSR Track roller bearings, In stock, Dimensions: 25 mm x 52 mm x 18 mm, Basic dynamic load rating: 14.4 kN, Static load rating: 20.8 kN.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 18 mm
- Basic dynamic load rating: 14.4 kN
- Basic static load rating: 20.8 kN
NA2204-2RSR-Track roller bearings
INA NA2204-2RSR Track roller bearings, In stock, Dimensions: 20 mm x 47 mm x 18 mm, Basic dynamic load rating: 14 kN, Static load rating: 19.1 kN.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 18 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 19.1 kN
NA2203-2RSR-Track roller bearings
INA NA2203-2RSR Track roller bearings, In stock, Dimensions: 17 mm x 40 mm x 16 mm, Basic dynamic load rating: 9.9 kN, Static load rating: 14 kN.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 16 mm
- Basic dynamic load rating: 9.9 kN
- Basic static load rating: 14 kN
NA2202-2RSR-Track roller bearings
INA NA2202-2RSR Track roller bearings, In stock, Dimensions: 15 mm x 35 mm x 14 mm, Basic dynamic load rating: 7.6 kN, Static load rating: 9.8 kN.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 14 mm
- Basic dynamic load rating: 7.6 kN
- Basic static load rating: 9.8 kN
NA2201-2RSR-Track roller bearings
INA NA2201-2RSR Track roller bearings, In stock, Dimensions: 12 mm x 32 mm x 14 mm, Basic dynamic load rating: 7.5 kN, Static load rating: 8.3 kN.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 14 mm
- Basic dynamic load rating: 7.5 kN
- Basic static load rating: 8.3 kN
NA2200-2RSR-Track roller bearings
INA NA2200-2RSR Track roller bearings, In stock, Dimensions: 10 mm x 30 mm x 14 mm, Basic dynamic load rating: 7 kN, Static load rating: 6.9 kN.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 14 mm
- Basic dynamic load rating: 7 kN
- Basic static load rating: 6.9 kN

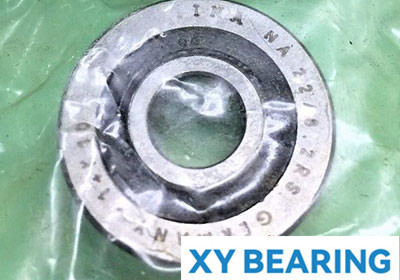

NA22/6-2RSR-Track roller bearings
INA NA22/6-2RSR Track roller bearings, In stock, Dimensions: 6 mm x 19 mm x 12 mm, Basic dynamic load rating: 3.9 kN, Static load rating: 3.7 kN.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 19 mm
- Width: 12 mm
- Basic dynamic load rating: 3.9 kN
- Basic static load rating: 3.7 kN
NATR20-PP-Track roller bearings
INA NATR20-PP Track roller bearings, In stock, Dimensions: 20 mm x 47 mm x 25 mm, Basic dynamic load rating: 15.4 kN, Static load rating: 26 kN.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 25 mm
- Basic dynamic load rating: 15.4 kN
- Basic static load rating: 26 kN
NATR17-PP-Track roller bearings
INA NATR17-PP Track roller bearings, In stock, Dimensions: 17 mm x 40 mm x 21 mm, Basic dynamic load rating: 10.9 kN, Static load rating: 15.8 kN.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 21 mm
- Basic dynamic load rating: 10.9 kN
- Basic static load rating: 15.8 kN
NATR8-PP-Track roller bearings
INA NATR8-PP Track roller bearings, In stock, Dimensions: 8 mm x 24 mm x 15 mm, Basic dynamic load rating: 5.5 kN, Static load rating: 6.6 kN.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 15 mm
- Basic dynamic load rating: 5.5 kN
- Basic static load rating: 6.6 kN

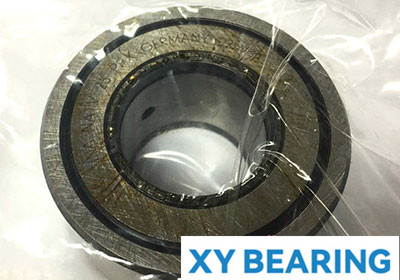

NATV20-Track roller bearings
INA NATV20 Track roller bearings, In stock, Dimensions: 20 mm x 47 mm x 25 mm, Basic dynamic load rating: 20.3 kN, Static load rating: 42 kN.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 25 mm
- Basic dynamic load rating: 20.3 kN
- Basic static load rating: 42 kN
NATV12-Track roller bearings
INA NATV12 Track roller bearings, In stock, Dimensions: 12 mm x 32 mm x 15 mm, Basic dynamic load rating: 9.7 kN, Static load rating: 15.7 kN.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 15 mm
- Basic dynamic load rating: 9.7 kN
- Basic static load rating: 15.7 kN
NATV6-Track roller bearings
INA NATV6 Track roller bearings, In stock, Dimensions: 6 mm x 19 mm x 12 mm, Basic dynamic load rating: 5.4 kN, Static load rating: 8 kN.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 19 mm
- Width: 12 mm
- Basic dynamic load rating: 5.4 kN
- Basic static load rating: 8 kN
NATV5-Track roller bearings
INA NATV5 Track roller bearings, In stock, Dimensions: 5 mm x 16 mm x 12 mm, Basic dynamic load rating: 4.9 kN, Static load rating: 6.6 kN.
- Brand: INA
- Inside Diameter: 5 mm
- Outside Diameter: 16 mm
- Width: 12 mm
- Basic dynamic load rating: 4.9 kN
- Basic static load rating: 6.6 kN
