Xin You Ya Bearing supplies support rollers in many different types and brands. We have a wide variety of these bearings in stock from well-renowned brands, such as SKF, IKO INA, etc. Support rollers are bearings designed for outer ring rotation, in which needle rollers are incorporated in a thick walled outer ring.
Support rollers include separable and non-separable types. These bearings are available in a variety of types to suit almost any kind of application. They are widely used for cam mechanisms and for linear motions of conveying equipment.
PWTR50110-2RS-RR-XL-Track roller bearings
INA PWTR50110-2RS-RR-XL Track roller bearings, In stock, Dimensions: 50 mm x 110 mm x 32 mm, Basic dynamic load rating: 59 kN, Static load rating: 94 kN.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 32 mm
- Basic dynamic load rating: 59 kN
- Basic static load rating: 94 kN
PWTR50-2RS-RR-XL-Track roller bearings
INA PWTR50-2RS-RR-XL Track roller bearings, In stock, Dimensions: 50 mm x 90 mm x 32 mm, Basic dynamic load rating: 46 kN, Static load rating: 66 kN.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 32 mm
- Basic dynamic load rating: 46 kN
- Basic static load rating: 66 kN
PWTR45100-2RS-RR-XL-Track roller bearings
INA PWTR45100-2RS-RR-XL Track roller bearings, In stock, Dimensions: 45 mm x 100 mm x 32 mm, Basic dynamic load rating: 56 kN, Static load rating: 85 kN.
- Brand: INA
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 32 mm
- Basic dynamic load rating: 56 kN
- Basic static load rating: 85 kN
STO8-TV-Track roller bearings
INA STO8-TV Track roller bearings, In stock, Dimensions: 8 mm x 24 mm x 10 mm, Basic dynamic load rating: 4.2 kN, Static load rating: 5.5 kN.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 24 mm
- Width: 10 mm
- Basic dynamic load rating: 4.2 kN
- Basic static load rating: 5.5 kN
STO6-TV-Track roller bearings
INA STO6-TV Track roller bearings, In stock, Dimensions: 6 mm x 19 mm x 10 mm, Basic dynamic load rating: 3.75 kN, Static load rating: 4.55 kN.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 19 mm
- Width: 10 mm
- Basic dynamic load rating: 3.75 kN
- Basic static load rating: 4.55 kN

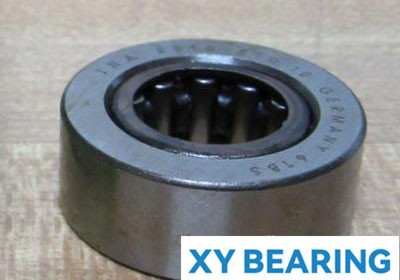

RSTO5-TV-Track roller bearings
INA RSTO5-TV Track roller bearings, In stock, Dimensions: 7 mm x 16 mm x 7.8 mm, Basic dynamic load rating: 2.55 kN, Static load rating: 2.6 kN.
- Brand: INA
- Inside Diameter: 7 mm
- Outside Diameter: 16 mm
- Width: 7.8 mm
- Basic dynamic load rating: 2.55 kN
- Basic static load rating: 2.6 kN
RSTO6-TV-Track roller bearings
INA RSTO6-TV Track roller bearings, In stock, Dimensions: 10 mm x 19 mm x 9.8 mm, Basic dynamic load rating: 3.75 kN, Static load rating: 4.55 kN.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 19 mm
- Width: 9.8 mm
- Basic dynamic load rating: 3.75 kN
- Basic static load rating: 4.55 kN
RSTO8-TV-Track roller bearings
INA RSTO8-TV Track roller bearings, In stock, Dimensions: 12 mm x 24 mm x 9.8 mm, Basic dynamic load rating: 4.2 kN, Static load rating: 5.5 kN.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 24 mm
- Width: 9.8 mm
- Basic dynamic load rating: 4.2 kN
- Basic static load rating: 5.5 kN
STO50-Track roller bearings
INA STO50 Track roller bearings, In stock, Dimensions: 50 mm x 90 mm x 20 mm, Basic dynamic load rating: 25.5 kN, Static load rating: 46 kN.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 25.5 kN
- Basic static load rating: 46 kN
STO45-Track roller bearings
INA STO45 Track roller bearings, In stock, Dimensions: 45 mm x 85 mm x 20 mm, Basic dynamic load rating: 25 kN, Static load rating: 43.5 kN.
- Brand: INA
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 20 mm
- Basic dynamic load rating: 25 kN
- Basic static load rating: 43.5 kN
STO40-Track roller bearings
INA STO40 Track roller bearings, In stock, Dimensions: 40 mm x 80 mm x 20 mm, Basic dynamic load rating: 23.7 kN, Static load rating: 39.5 kN.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 20 mm
- Basic dynamic load rating: 23.7 kN
- Basic static load rating: 39.5 kN

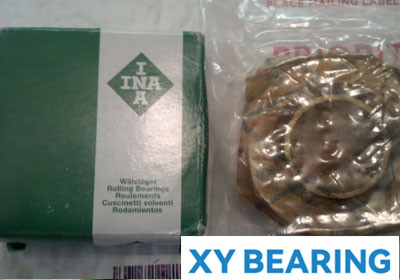

STO35-Track roller bearings
INA STO35 Track roller bearings, In stock, Dimensions: 35 mm x 72 mm x 20 mm, Basic dynamic load rating: 25 kN, Static load rating: 40.5 kN.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 72 mm
- Width: 20 mm
- Basic dynamic load rating: 25 kN
- Basic static load rating: 40.5 kN
STO30-Track roller bearings
INA STO30 Track roller bearings, In stock, Dimensions: 30 mm x 62 mm x 20 mm, Basic dynamic load rating: 23.1 kN, Static load rating: 35 kN.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 20 mm
- Basic dynamic load rating: 23.1 kN
- Basic static load rating: 35 kN
STO25-Track roller bearings
INA STO25 Track roller bearings, In stock, Dimensions: 25 mm x 52 mm x 16 mm, Basic dynamic load rating: 16.4 kN, Static load rating: 23.2 kN.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 16 mm
- Basic dynamic load rating: 16.4 kN
- Basic static load rating: 23.2 kN
STO20-Track roller bearings
INA STO20 Track roller bearings, In stock, Dimensions: 20 mm x 47 mm x 16 mm, Basic dynamic load rating: 16.1 kN, Static load rating: 21.7 kN.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 16 mm
- Basic dynamic load rating: 16.1 kN
- Basic static load rating: 21.7 kN
STO17-Track roller bearings
INA STO17 Track roller bearings, In stock, Dimensions: 17 mm x 40 mm x 16 mm, Basic dynamic load rating: 14.2 kN, Static load rating: 17.9 kN.
- Brand: INA
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 16 mm
- Basic dynamic load rating: 14.2 kN
- Basic static load rating: 17.9 kN

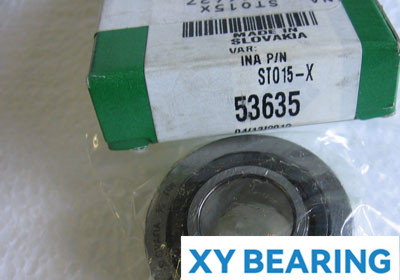

STO15-Track roller bearings
INA STO15 Track roller bearings, In stock, Dimensions: 15 mm x 35 mm x 12 mm, Basic dynamic load rating: 9.1 kN, Static load rating: 10.9 kN.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 12 mm
- Basic dynamic load rating: 9.1 kN
- Basic static load rating: 10.9 kN

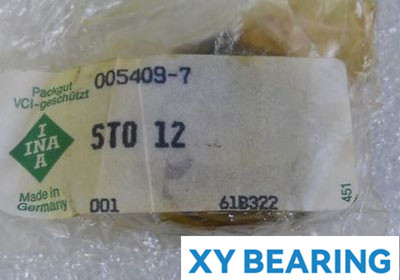

STO12-Track roller bearings
INA STO12 Track roller bearings, In stock, Dimensions: 12 mm x 32 mm x 12 mm, Basic dynamic load rating: 9 kN, Static load rating: 10.3 kN.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 12 mm
- Basic dynamic load rating: 9 kN
- Basic static load rating: 10.3 kN

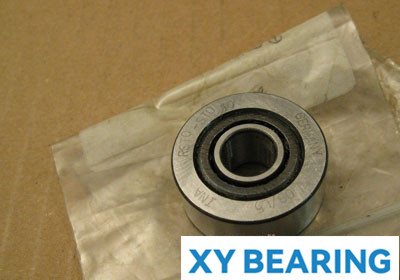

STO10-Track roller bearings
INA STO10 Track roller bearings, In stock, Dimensions: 10 mm x 30 mm x 12 mm, Basic dynamic load rating: 8.4 kN, Static load rating: 9.3 kN.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 12 mm
- Basic dynamic load rating: 8.4 kN
- Basic static load rating: 9.3 kN
RSTO50-Track roller bearings
INA RSTO50 Track roller bearings, In stock, Dimensions: 60 mm x 90 mm x 19.8 mm, Basic dynamic load rating: 25.5 kN, Static load rating: 46 kN.
- Brand: INA
- Inside Diameter: 60 mm
- Outside Diameter: 90 mm
- Width: 19.8 mm
- Basic dynamic load rating: 25.5 kN
- Basic static load rating: 46 kN
