Ball bearings come in a wide variety of types, designs, series and sizes. Ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the moving parts of the bearing. A ball bearing can be highly effective at reducing friction between two parts that need to move freely.
Brand: SKF, NSK, FAG, INA, NTN, TIMKEN, KAYDON, NMB, DEBOT
6203LLU_Deep groove ball bearings
6203LLU_Deep groove ball bearings_NTN Dimensions: 17 mm x 40 mm x 12 mm, Limiting Speed: 9.6 kN r/min, Reference speed: 4.6 kNr/min.
- Brand: NTN
- Inside Diameter: 17 mm
- Outside Diameter: 40 mm
- Width: 12 mm
- Basic dynamic load rating: 9.6 kN
- Basic static load rating: 4.6 kN

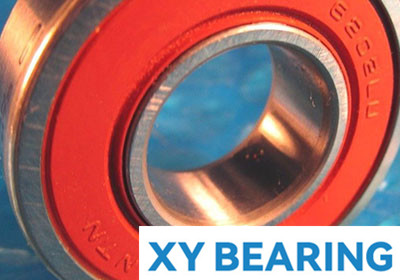

6202LLU_Deep groove ball bearings
6202LLU_Deep groove ball bearings_NTN Dimensions: 15 mm x 35 mm x 11 mm, Limiting Speed: 7.75 kN r/min, Reference speed: 3.6 kNr/min.
- Brand: NTN
- Inside Diameter: 15 mm
- Outside Diameter: 35 mm
- Width: 11 mm
- Basic dynamic load rating: 7.75 kN
- Basic static load rating: 3.6 kN

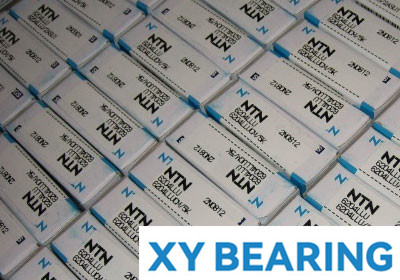

6204LLU_Deep groove ball bearings
6204LLU_Deep groove ball bearings_NTN Dimensions: 20 mm x 47 mm x 14 mm, Limiting Speed: 12.8 kN r/min, Reference speed: 6.65 kNr/min.
- Brand: NTN
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Basic dynamic load rating: 12.8 kN
- Basic static load rating: 6.65 kN
6205LLU_Deep groove ball bearings
6205LLU_Deep groove ball bearings_NTN Dimensions: 25 mm x 52 mm x 15 mm, Limiting Speed: 14 kN r/min, Reference speed: 7.85 kNr/min.
- Brand: NTN
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 15 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 7.85 kN
