Thrust bearings are designed to support a high axial load while doing this (parallel to the shaft). Different kinds of thrust bearings are used to support different amounts of axial load. Thrust ball bearings are used in applications that use little axial load. Spherical roller thrust bearings are used in applications that require high axial load, and can also support shafts that are out of alignment.
Thrust bearings
Generally, thrust bearings are composed of two washers (raceways) in which those for ball bearings may be grooved, and the rolling elements.

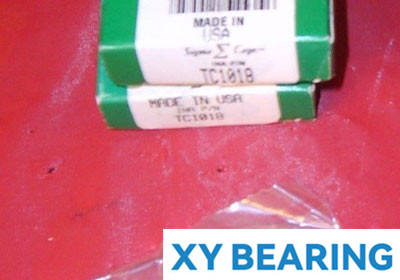

TC1018_Thrust roller bearings
TC1018_Thrust roller bearings_INA Dimensions: 15.875 mm x 28.575 mm x 1.984 mm, Limiting Speed:9.6 kN r/min, Reference speed:29.5 kNr/min.
- Brand: INA
- Inside Diameter: 15.875 mm
- Outside Diameter: 28.575 mm
- Width: 1.984 mm
- Basic dynamic load rating: 9.6 kN
- Basic static load rating: 29.5 kN
TC1828_Thrust roller bearings
TC1828_Thrust roller bearings_INA Dimensions: 28.575 mm x 44.45 mm x 1.984 mm, Limiting Speed:17.1 kN r/min, Reference speed:73 kNr/min.
- Brand: INA
- Inside Diameter: 28.575 mm
- Outside Diameter: 44.45 mm
- Width: 1.984 mm
- Basic dynamic load rating: 17.1 kN
- Basic static load rating: 73 kN

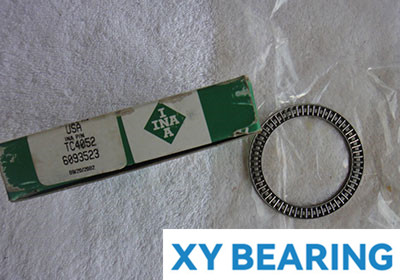

TC4052_Thrust roller bearings
TC4052_Thrust roller bearings_INA Dimensions: 63.5 mm x 82.55 mm x 1.984 mm, Limiting Speed:27.5 kN r/min, Reference speed:168 kNr/min.
- Brand: INA
- Inside Diameter: 63.5 mm
- Outside Diameter: 82.55 mm
- Width: 1.984 mm
- Basic dynamic load rating: 27.5 kN
- Basic static load rating: 168 kN

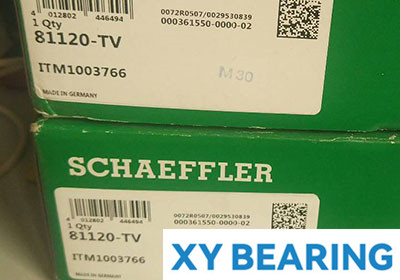

81120-TV_Thrust roller bearings
81120-TV_Thrust roller bearings_INA Dimensions: 100 mm x 135 mm x 25 mm, Limiting Speed:199 kN r/min, Reference speed:650 kNr/min.
- Brand: INA
- Inside Diameter: 100 mm
- Outside Diameter: 135 mm
- Width: 25 mm
- Basic dynamic load rating: 199 kN
- Basic static load rating: 650 kN

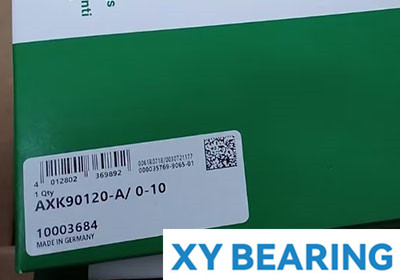

AXK90120_Thrust roller bearings
AXK90120_Thrust roller bearings_INA Dimensions: 90 mm x 120 mm x 4 mm, Limiting Speed:73 kN r/min, Reference speed:405 kNr/min.
- Brand: INA
- Inside Diameter: 90 mm
- Outside Diameter: 120 mm
- Width: 4 mm
- Basic dynamic load rating: 73 kN
- Basic static load rating: 405 kN

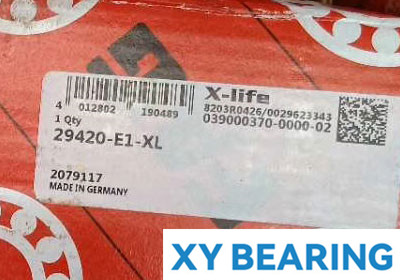

29420-E1-XL_Thrust roller bearings
29420-E1-XL_Thrust roller bearings_FAG Dimensions: 100 mm x 210 mm x 67 mm, Limiting Speed:1060 kN r/min, Reference speed:2600 kNr/min.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 210 mm
- Width: 67 mm
- Basic dynamic load rating: 1060 kN
- Basic static load rating: 2600 kN

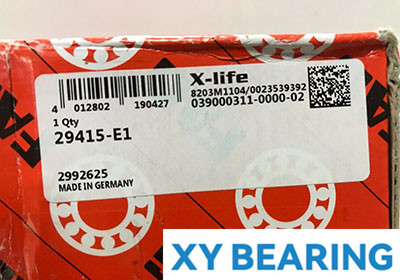

29415-E1-XL_Thrust roller bearings
29415-E1-XL_Thrust roller bearings_FAG Dimensions: 75 mm x 160 mm x 51 mm, Limiting Speed:650 kN r/min, Reference speed:1540 kNr/min.
- Brand: FAG
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 51 mm
- Basic dynamic load rating: 650 kN
- Basic static load rating: 1540 kN
