INA TC1018

INA TC1018 Thrust roller bearings

Also known as : TC1018

Inside Diameter: 15.875 mm
Outside Diameter: 28.575 mm
Width: 1.984 mm
Basic dynamic load rating: 9.6 kN
Basic static load rating: 29.5 kN

INA TC1018

INA TC1018 details

Number	TC1018

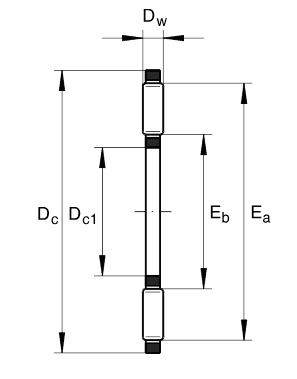

Type	Needle thrust bearings single direction, to ABMA 21.2 - 1988, suitable for combination with axial bearing washers TWA, inch sizes
D_c1	5/8inch
D_c1	15,875mm
D_c	1,125inch
D_c	28,575mm
D_w	0,078inch
D_w	1,984mm
E_a	1,051inch
E_a	26,7mm
E_b	0,689inch
E_b	17,5mm
m	0,009lbs	Mass
m	0,004kg	Mass
C_a	2160lbf	Basic dynamic load rating, axial
C_a	9600N	Basic dynamic load rating, axial
C_0a	6630lbf	Basic static load rating, axial
C_0a	29500N	Basic static load rating, axial
n_G	130001/min	Limiting speed

INA TC1018 bearing cross reference

81222-TV
15.875 mmx 28.575 mmx1.984 mm

89326-M
15.875 mmx 28.575 mmx1.984 mm

K81217-TV
15.875 mmx 28.575 mmx1.984 mm

K81214-TV
15.875 mmx 28.575 mmx1.984 mm

K81212-TV
15.875 mmx 28.575 mmx1.984 mm

K81211-TV
15.875 mmx 28.575 mmx1.984 mm

K81207-TV
15.875 mmx 28.575 mmx1.984 mm

K81160-M
15.875 mmx 28.575 mmx1.984 mm

K81148-M
15.875 mmx 28.575 mmx1.984 mm

K81144-M
15.875 mmx 28.575 mmx1.984 mm

K81136-M
15.875 mmx 28.575 mmx1.984 mm

K81134-TV
15.875 mmx 28.575 mmx1.984 mm
