INA 81222-TV Thrust roller bearings
Also known as : 81222-TV
- Inside Diameter: 110 mm
- Outside Diameter: 160 mm
- Width: 38 mm
- Basic dynamic load rating: 325 kN
- Basic static load rating: 1030 kN
INA 81222-TV
INA 81222-TV details

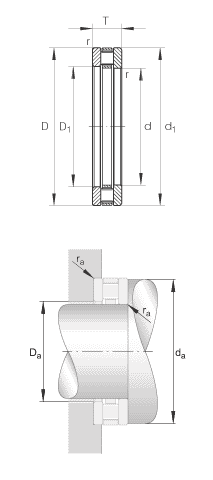

| Number | 81222-TV | |
|---|---|---|
| Type | Thrust roller bearings | |
| d | 110 mm | |
| D | 160 mm | |
| T | 38 mm | |
| D1 | 113 mm | |
| Da max | 117 mm | |
| d1 | 160 mm | |
| da min | 152 mm | |
| ra max | 1,1 mm | |
| rmin | 1,1 mm | |
| m | 2,29 kg | Mass |
| Ca | 325000 N | Basic dynamic load rating, axial |
| C0a | 1030000 N | Basic static load rating, axial |
| Cua | 104000 N | Fatigue limit load |
| nG | 2150 1/min | Limiting speed |
| nB | 870 1/min | Reference speed |
| K81222-TV | Allocated axial cylindrical roller and cage assembly | |
| GS81222 | Allocated housing locating washer | |
| WS81222 | Allocated shaft locating washer |
INA 81222-TV bearing cross reference
81222-TV
110 mmx 160 mmx38 mm
89326-M
110 mmx 160 mmx38 mm
K81217-TV
110 mmx 160 mmx38 mm
K81214-TV
110 mmx 160 mmx38 mm
K81212-TV
110 mmx 160 mmx38 mm
K81211-TV
110 mmx 160 mmx38 mm
K81207-TV
110 mmx 160 mmx38 mm
K81160-M
110 mmx 160 mmx38 mm
K81148-M
110 mmx 160 mmx38 mm
K81144-M
110 mmx 160 mmx38 mm
K81136-M
110 mmx 160 mmx38 mm
