INA AXK90120 Thrust roller bearings
Also known as : AXK90120
- Inside Diameter: 90 mm
- Outside Diameter: 120 mm
- Width: 4 mm
- Basic dynamic load rating: 73 kN
- Basic static load rating: 405 kN
INA AXK90120
INA AXK90120 details
| Number | AXK90120 | |
|---|---|---|
| Type |
Needle thrust bearing single direction, to DIN 5405-2 |
|

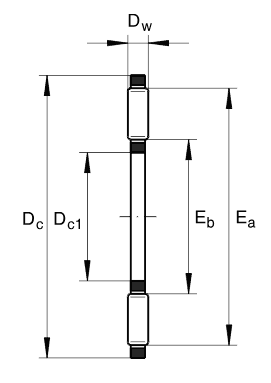

| Dc1 | 90mm | |
| Dc | 120mm | |
| Dw | 4mm | |
| Ea | 118mm | |
| Eb | 94mm | |
| m | 86g | Mass |
| Ca | 73000N | Basic dynamic load rating, axial |
| C0a | 405000N | Basic static load rating, axial |
| Cua | 45000N | Fatigue limit load |
| nG | 27001/min | Limiting speed |
| nϑr | 11001/min | Reference speed |
| AS90120 | Allocated axial bearing washer |
INA AXK90120 bearing cross reference
81222-TV
90 mmx 120 mmx4 mm
89326-M
90 mmx 120 mmx4 mm
K81217-TV
90 mmx 120 mmx4 mm
K81214-TV
90 mmx 120 mmx4 mm
K81212-TV
90 mmx 120 mmx4 mm
K81211-TV
90 mmx 120 mmx4 mm
K81207-TV
90 mmx 120 mmx4 mm
K81160-M
90 mmx 120 mmx4 mm
K81148-M
90 mmx 120 mmx4 mm
K81144-M
90 mmx 120 mmx4 mm
K81136-M
90 mmx 120 mmx4 mm
