Thrust bearings are designed to support a high axial load while doing this (parallel to the shaft). Different kinds of thrust bearings are used to support different amounts of axial load. Thrust ball bearings are used in applications that use little axial load. Spherical roller thrust bearings are used in applications that require high axial load, and can also support shafts that are out of alignment.
Thrust bearings
Generally, thrust bearings are composed of two washers (raceways) in which those for ball bearings may be grooved, and the rolling elements.
K89309-TV_Thrust roller bearings
K89309-TV_Thrust roller bearings_INA Dimensions: 45 mm x 85 mm x 7.5 mm, Limiting Speed:139 kN r/min, Reference speed:445 kNr/min.
- Brand: INA
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 7.5 mm
- Basic dynamic load rating: 139 kN
- Basic static load rating: 445 kN

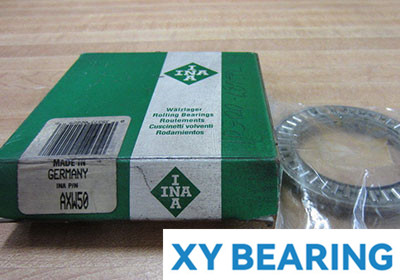

AXW50_Thrust roller bearings
AXW50_Thrust roller bearings_INA Dimensions: 50 mm x 73 mm x 4.2 mm, Limiting Speed:32 kN r/min, Reference speed:143 kNr/min.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 73 mm
- Width: 4.2 mm
- Basic dynamic load rating: 32 kN
- Basic static load rating: 143 kN
AXW35_Thrust roller bearings
AXW35_Thrust roller bearings_INA Dimensions: 35 mm x 55 mm x 3.2 mm, Limiting Speed:17.8 kN r/min, Reference speed:81 kNr/min.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 55 mm
- Width: 3.2 mm
- Basic dynamic load rating: 17.8 kN
- Basic static load rating: 81 kN

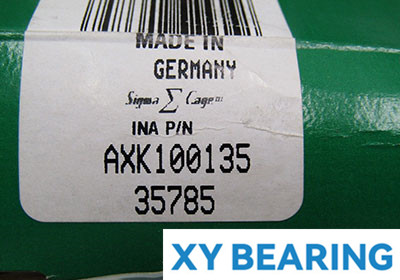

AXK100135_Thrust roller bearings
AXK100135_Thrust roller bearings_INA Dimensions: 100 mm x 135 mm x 4 mm, Limiting Speed:91 kN r/min, Reference speed:560 kNr/min.
- Brand: INA
- Inside Diameter: 100 mm
- Outside Diameter: 135 mm
- Width: 4 mm
- Basic dynamic load rating: 91 kN
- Basic static load rating: 560 kN

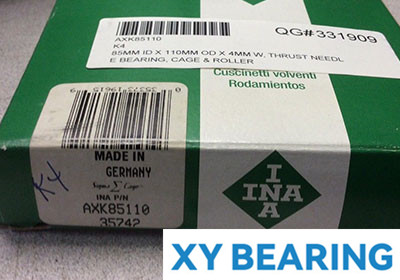

AXK85110_Thrust roller bearings
AXK85110_Thrust roller bearings_INA Dimensions: 85 mm x 110 mm x 4 mm, Limiting Speed:58 kN r/min, Reference speed:290 kNr/min.
- Brand: INA
- Inside Diameter: 85 mm
- Outside Diameter: 110 mm
- Width: 4 mm
- Basic dynamic load rating: 58 kN
- Basic static load rating: 290 kN

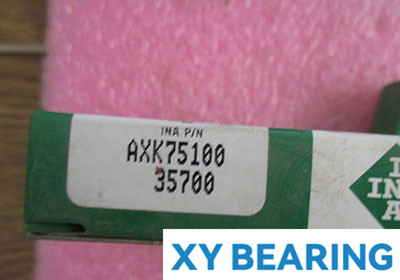

AXK75100_Thrust roller bearings
AXK75100_Thrust roller bearings_INA Dimensions: 75 mm x 100 mm x 4 mm, Limiting Speed:55 kN r/min, Reference speed:265 kNr/min.
- Brand: INA
- Inside Diameter: 75 mm
- Outside Diameter: 100 mm
- Width: 4 mm
- Basic dynamic load rating: 55 kN
- Basic static load rating: 265 kN

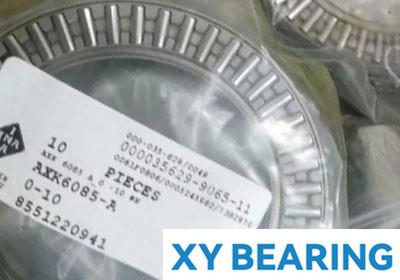

AXK6085_Thrust roller bearings
AXK6085_Thrust roller bearings_INA Dimensions: 60 mm x 85 mm x 3 mm, Limiting Speed:44.5 kN r/min, Reference speed:234 kNr/min.
- Brand: INA
- Inside Diameter: 60 mm
- Outside Diameter: 85 mm
- Width: 3 mm
- Basic dynamic load rating: 44.5 kN
- Basic static load rating: 234 kN

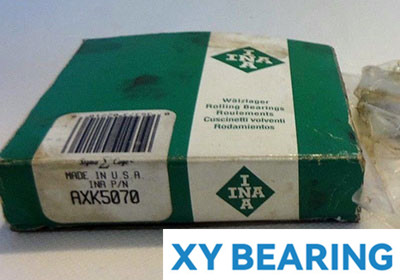

AXK5070_Thrust roller bearings
AXK5070_Thrust roller bearings_INA Dimensions: 50 mm x 70 mm x 3 mm, Limiting Speed:32 kN r/min, Reference speed:143 kNr/min.
- Brand: INA
- Inside Diameter: 50 mm
- Outside Diameter: 70 mm
- Width: 3 mm
- Basic dynamic load rating: 32 kN
- Basic static load rating: 143 kN

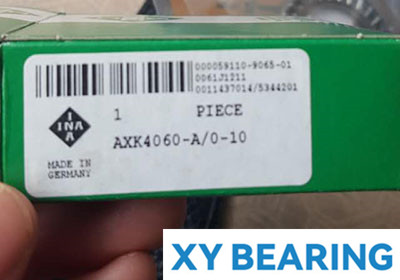

AXK4060_Thrust roller bearings
AXK4060_Thrust roller bearings_INA Dimensions: 40 mm x 60 mm x 3 mm, Limiting Speed:28 kN r/min, Reference speed:114 kNr/min.
- Brand: INA
- Inside Diameter: 40 mm
- Outside Diameter: 60 mm
- Width: 3 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 114 kN

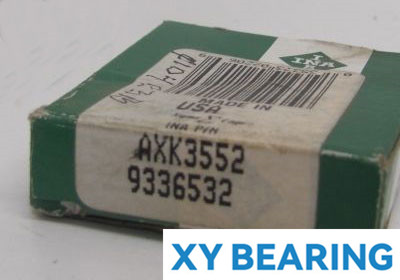

AXK3552_Thrust roller bearings
AXK3552_Thrust roller bearings_INA Dimensions: 35 mm x 52 mm x 2 mm, Limiting Speed:17.8 kN r/min, Reference speed:81 kNr/min.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 52 mm
- Width: 2 mm
- Basic dynamic load rating: 17.8 kN
- Basic static load rating: 81 kN
