Thrust bearings are designed to support a high axial load while doing this (parallel to the shaft). Different kinds of thrust bearings are used to support different amounts of axial load. Thrust ball bearings are used in applications that use little axial load. Spherical roller thrust bearings are used in applications that require high axial load, and can also support shafts that are out of alignment.
Thrust bearings
Generally, thrust bearings are composed of two washers (raceways) in which those for ball bearings may be grooved, and the rolling elements.

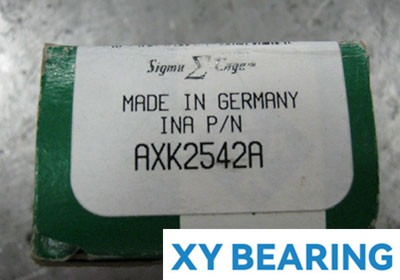

AXK2542_Thrust roller bearings
AXK2542_Thrust roller bearings_INA Dimensions: 25 mm x 42 mm x 2 mm, Limiting Speed:14.7 kN r/min, Reference speed:58 kNr/min.
- Brand: INA
- Inside Diameter: 25 mm
- Outside Diameter: 42 mm
- Width: 2 mm
- Basic dynamic load rating: 14.7 kN
- Basic static load rating: 58 kN

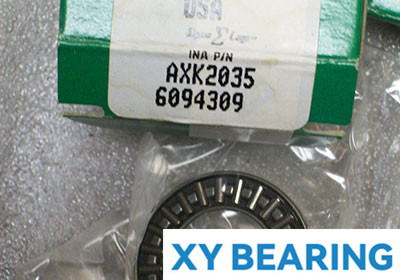

AXK2035_Thrust roller bearings
AXK2035_Thrust roller bearings_INA Dimensions: 20 mm x 35 mm x 2 mm, Limiting Speed:13.1 kN r/min, Reference speed:46.5 kNr/min.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 35 mm
- Width: 2 mm
- Basic dynamic load rating: 13.1 kN
- Basic static load rating: 46.5 kN

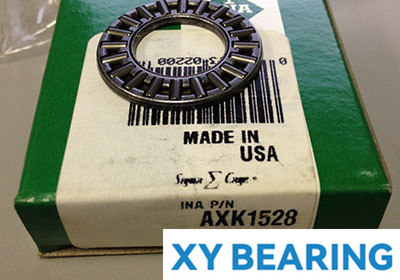

AXK1528_Thrust roller bearings
AXK1528_Thrust roller bearings_INA Dimensions: 15 mm x 28 mm x 2 mm, Limiting Speed:11.3 kN r/min, Reference speed:36 kNr/min.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 28 mm
- Width: 2 mm
- Basic dynamic load rating: 11.3 kN
- Basic static load rating: 36 kN

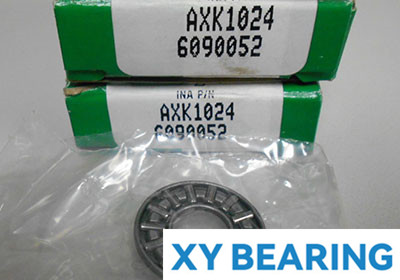

AXK1024_Thrust roller bearings
AXK1024_Thrust roller bearings_INA Dimensions: 10 mm x 24 mm x 2 mm, Limiting Speed:9.2 kN r/min, Reference speed:25.5 kNr/min.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 24 mm
- Width: 2 mm
- Basic dynamic load rating: 9.2 kN
- Basic static load rating: 25.5 kN

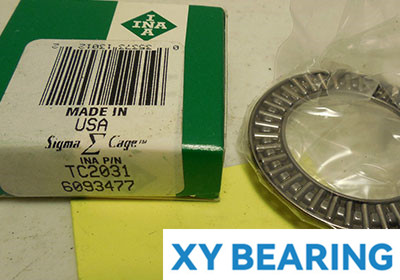

TC2031_Thrust roller bearings
TC2031_Thrust roller bearings_INA Dimensions: 31.75 mm x 49.213 mm x 1.984 mm, Limiting Speed:19.9 kN r/min, Reference speed:91 kNr/min.
- Brand: INA
- Inside Diameter: 31.75 mm
- Outside Diameter: 49.213 mm
- Width: 1.984 mm
- Basic dynamic load rating: 19.9 kN
- Basic static load rating: 91 kN

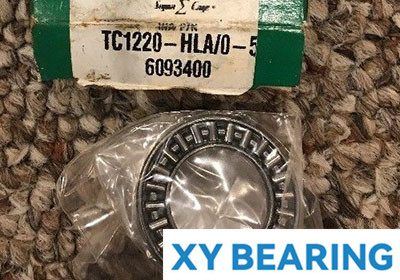

TC1220_Thrust roller bearings
TC1220_Thrust roller bearings_INA Dimensions: 19.05 mm x 31.75 mm x 1.984 mm, Limiting Speed:10.7 kN r/min, Reference speed:35.5 kNr/min.
- Brand: INA
- Inside Diameter: 19.05 mm
- Outside Diameter: 31.75 mm
- Width: 1.984 mm
- Basic dynamic load rating: 10.7 kN
- Basic static load rating: 35.5 kN

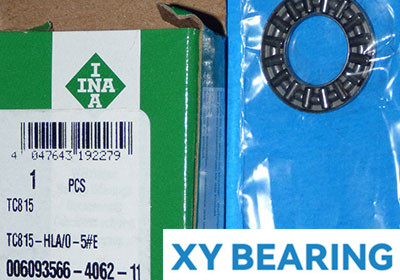

TC815_Thrust roller bearings
TC815_Thrust roller bearings_INA Dimensions: 12.7 mm x 23.813 mm x 1.984 mm, Limiting Speed:8.5 kN r/min, Reference speed:23.6 kNr/min.
- Brand: INA
- Inside Diameter: 12.7 mm
- Outside Diameter: 23.813 mm
- Width: 1.984 mm
- Basic dynamic load rating: 8.5 kN
- Basic static load rating: 23.6 kN

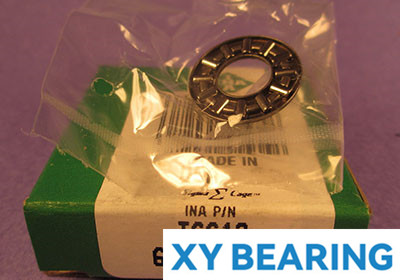

TC613_Thrust roller bearings
TC613_Thrust roller bearings_INA Dimensions: 9.525 mm x 20.638 mm x 1.984 mm, Limiting Speed:7.1 kN r/min, Reference speed:17.7 kNr/min.
- Brand: INA
- Inside Diameter: 9.525 mm
- Outside Diameter: 20.638 mm
- Width: 1.984 mm
- Basic dynamic load rating: 7.1 kN
- Basic static load rating: 17.7 kN

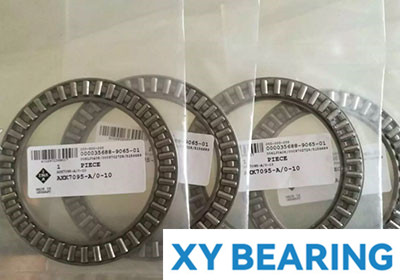

AXK7095_Thrust roller bearings
AXK7095_Thrust roller bearings_INA Dimensions: 70 mm x 95 mm x 4 mm, Limiting Speed:54 kN r/min, Reference speed:255 kNr/min.
- Brand: INA
- Inside Diameter: 70 mm
- Outside Diameter: 95 mm
- Width: 4 mm
- Basic dynamic load rating: 54 kN
- Basic static load rating: 255 kN

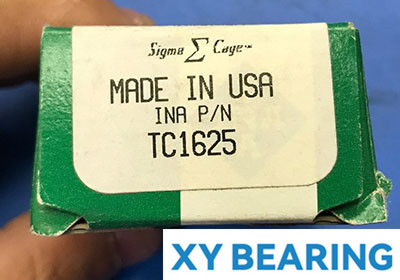

TC1625_Thrust roller bearings
TC1625_Thrust roller bearings_INA Dimensions: 25.4 mm x 39.688 mm x 1.984 mm, Limiting Speed:13.9 kN r/min, Reference speed:54 kNr/min.
- Brand: INA
- Inside Diameter: 25.4 mm
- Outside Diameter: 39.688 mm
- Width: 1.984 mm
- Basic dynamic load rating: 13.9 kN
- Basic static load rating: 54 kN
