INA TC1625

INA TC1625 Thrust roller bearings

Also known as : TC1625

Inside Diameter: 25.4 mm
Outside Diameter: 39.688 mm
Width: 1.984 mm
Basic dynamic load rating: 13.9 kN
Basic static load rating: 54 kN

INA TC1625

INA TC1625 details

Number	TC1625
Type	Needle thrust bearings single direction, to ABMA 21.2 - 1988, suitable for combination with axial bearing washers TWA, inch sizes

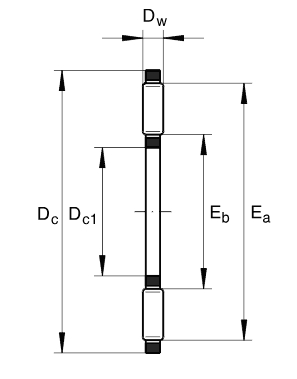

D_c1	1inch
D_c1	25,4mm
D_c	1,562inch
D_c	39,688mm
D_w	0,078inch
D_w	1,984mm
E_a	1,48inch
E_a	37,6mm
E_b	1,071inch
E_b	27,2mm
m	0,013lbs	Mass
m	0,006kg	Mass
C_a	3130lbf	Basic dynamic load rating, axial
C_a	13900N	Basic dynamic load rating, axial
C_0a	12100lbf	Basic static load rating, axial
C_0a	54000N	Basic static load rating, axial
n_G	89001/min	Limiting speed

INA TC1625 bearing cross reference

81222-TV
25.4 mmx 39.688 mmx1.984 mm

89326-M
25.4 mmx 39.688 mmx1.984 mm

K81217-TV
25.4 mmx 39.688 mmx1.984 mm

K81214-TV
25.4 mmx 39.688 mmx1.984 mm

K81212-TV
25.4 mmx 39.688 mmx1.984 mm

K81211-TV
25.4 mmx 39.688 mmx1.984 mm

K81207-TV
25.4 mmx 39.688 mmx1.984 mm

K81160-M
25.4 mmx 39.688 mmx1.984 mm

K81148-M
25.4 mmx 39.688 mmx1.984 mm

K81144-M
25.4 mmx 39.688 mmx1.984 mm

K81136-M
25.4 mmx 39.688 mmx1.984 mm

K81134-TV
25.4 mmx 39.688 mmx1.984 mm
