INA AXK7095 Thrust roller bearings
Also known as : AXK7095
- Inside Diameter: 70 mm
- Outside Diameter: 95 mm
- Width: 4 mm
- Basic dynamic load rating: 54 kN
- Basic static load rating: 255 kN
INA AXK7095
INA AXK7095 details

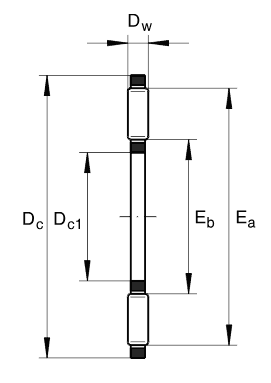

| Number | AXK7095 | |
|---|---|---|
| Type |
Needle thrust bearing single direction, to DIN 5405-2 |
|
| Dc1 | 70mm | |
| Dc | 95mm | |
| Dw | 4mm | |
| Ea | 93mm | |
| Eb | 74mm | |
| m | 60g | Mass |
| Ca | 54000N | Basic dynamic load rating, axial |
| C0a | 255000N | Basic static load rating, axial |
| Cua | 27000N | Fatigue limit load |
| nG | 34501/min | Limiting speed |
| nϑr | 14001/min | Reference speed |
| AS7095 | Allocated axial bearing washer |
INA AXK7095 bearing cross reference
81222-TV
70 mmx 95 mmx4 mm
89326-M
70 mmx 95 mmx4 mm
K81217-TV
70 mmx 95 mmx4 mm
K81214-TV
70 mmx 95 mmx4 mm
K81212-TV
70 mmx 95 mmx4 mm
K81211-TV
70 mmx 95 mmx4 mm
K81207-TV
70 mmx 95 mmx4 mm
K81160-M
70 mmx 95 mmx4 mm
K81148-M
70 mmx 95 mmx4 mm
K81144-M
70 mmx 95 mmx4 mm
K81136-M
70 mmx 95 mmx4 mm
