FAG 29415-E1-XL Thrust roller bearings
Also known as : 29415-E1-XL, 29415E
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 51 mm
- Basic dynamic load rating: 650 kN
- Basic static load rating: 1540 kN
FAG 29415-E1-XL

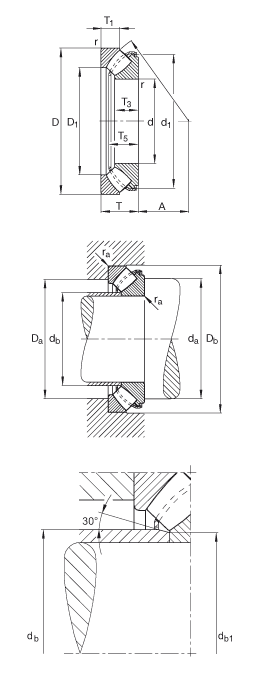

FAG 29415-E1-XL details
| model | 29415-E1-XL |
|---|---|
| d | 75 mm |
| D | 160 mm |
| T | 51 mm |
| A | 47 mm |
| D1 | 105.5 mm |
| Da max | 132 mm |
| Db min | 163 mm |
| d1 | 142.3 mm |
| da min | 115 mm |
| db max | 82.5 mm |
| ra max | 2 mm |
| rmin | 2 mm |
| T1 | 24.5 mm |
| T3 | 33.5 mm |
| T5 | 46 mm |
| Ca | 650000 N |
| C0a | 1540000 N |
| Limiting speed | 4700 1/min |
| Reference speed | 2260 1/min |
| Cua | 174000 N Fatigue limit load, radial |
| mass | 4.6 kg |
