Thrust ball bearings are classified into those with flat seats or aligning seats depending on the shape of the outer ring seat (housing washer). They are designed to accommodate axial loads only and must not be subjected to any radial load.
Brand: SKF, NSK, FAG, INA, TIMKEN
Thrust deep groove ball bearings
Thrust angular contact ball bearings
51109-Thrust ball bearings
SKF 51109 Thrust ball bearings, In stock, Dimensions: 45 mm x 65 mm x 14 mm, Basic dynamic load rating: 26.5 kN, Static load rating: 69.5 kN.
- Brand: SKF
- Inside Diameter: 45 mm
- Outside Diameter: 65 mm
- Width: 14 mm
- Basic dynamic load rating: 26.5 kN
- Basic static load rating: 69.5 kN
51108-Thrust ball bearings
SKF 51108 Thrust ball bearings, In stock, Dimensions: 40 mm x 60 mm x 13 mm, Basic dynamic load rating: 25.5 kN, Static load rating: 63 kN.
- Brand: SKF
- Inside Diameter: 40 mm
- Outside Diameter: 60 mm
- Width: 13 mm
- Basic dynamic load rating: 25.5 kN
- Basic static load rating: 63 kN
51106-Thrust ball bearings
SKF 51106 Thrust ball bearings, In stock, Dimensions: 30 mm x 47 mm x 11 mm, Basic dynamic load rating: 19 kN, Static load rating: 43 kN.
- Brand: SKF
- Inside Diameter: 30 mm
- Outside Diameter: 47 mm
- Width: 11 mm
- Basic dynamic load rating: 19 kN
- Basic static load rating: 43 kN
51105-Thrust ball bearings
SKF 51105 Thrust ball bearings, In stock, Dimensions: 25 mm x 42 mm x 11 mm, Basic dynamic load rating: 18.2 kN, Static load rating: 39 kN.
- Brand: SKF
- Inside Diameter: 25 mm
- Outside Diameter: 42 mm
- Width: 11 mm
- Basic dynamic load rating: 18.2 kN
- Basic static load rating: 39 kN
51104-Thrust ball bearings
SKF 51104 Thrust ball bearings, In stock, Dimensions: 20 mm x 35 mm x 10 mm, Basic dynamic load rating: 15.1 kN, Static load rating: 29 kN.
- Brand: SKF
- Inside Diameter: 20 mm
- Outside Diameter: 35 mm
- Width: 10 mm
- Basic dynamic load rating: 15.1 kN
- Basic static load rating: 29 kN
51103-Thrust ball bearings
SKF 51103 Thrust ball bearings, In stock, Dimensions: 17 mm x 30 mm x 9 mm, Basic dynamic load rating: 11.4 kN, Static load rating: 21.2 kN.
- Brand: SKF
- Inside Diameter: 17 mm
- Outside Diameter: 30 mm
- Width: 9 mm
- Basic dynamic load rating: 11.4 kN
- Basic static load rating: 21.2 kN
51100-Thrust ball bearings
SKF 51100 Thrust ball bearings, In stock, Dimensions: 10 mm x 24 mm x 9 mm, Basic dynamic load rating: 9.95 kN, Static load rating: 15.3 kN.
- Brand: SKF
- Inside Diameter: 10 mm
- Outside Diameter: 24 mm
- Width: 9 mm
- Basic dynamic load rating: 9.95 kN
- Basic static load rating: 15.3 kN

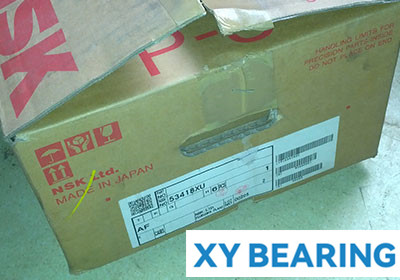

53418XU-Thrust ball bearings
NSK 53418XU Thrust ball bearings, In stock, Dimensions: 90 mm x 190 mm x 88 mm, Basic dynamic load rating: 330 kN, Static load rating: 825 kN.
- Brand: NSK
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 88 mm
- Basic dynamic load rating: 330 kN
- Basic static load rating: 825 kN

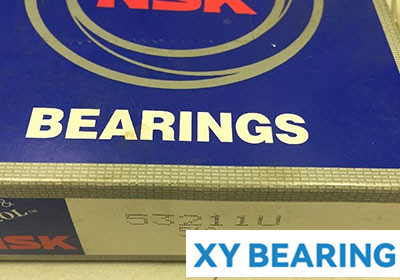

53211U-Thrust ball bearings
NSK 53211U Thrust ball bearings, In stock, Dimensions: 55 mm x 90 mm x 30 mm, Basic dynamic load rating: 70 kN, Static load rating: 159 kN.
- Brand: NSK
- Inside Diameter: 55 mm
- Outside Diameter: 90 mm
- Width: 30 mm
- Basic dynamic load rating: 70 kN
- Basic static load rating: 159 kN
51222-Thrust ball bearings
NSK 51222 Thrust ball bearings, In stock, Dimensions: 110 mm x 160 mm x 38 mm, Basic dynamic load rating: 136 kN, Static load rating: 395 kN.
- Brand: NSK
- Inside Diameter: 110 mm
- Outside Diameter: 160 mm
- Width: 38 mm
- Basic dynamic load rating: 136 kN
- Basic static load rating: 395 kN
51320-Thrust ball bearings
NSK 51320 Thrust ball bearings, In stock, Dimensions: 100 mm x 170 mm x 55 mm, Basic dynamic load rating: 239 kN, Static load rating: 595 kN.
- Brand: NSK
- Inside Diameter: 100 mm
- Outside Diameter: 170 mm
- Width: 55 mm
- Basic dynamic load rating: 239 kN
- Basic static load rating: 595 kN

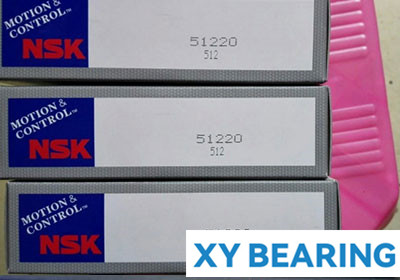

51220-Thrust ball bearings
NSK 51220 Thrust ball bearings, In stock, Dimensions: 100 mm x 150 mm x 38 mm, Basic dynamic load rating: 135 kN, Static load rating: 375 kN.
- Brand: NSK
- Inside Diameter: 100 mm
- Outside Diameter: 150 mm
- Width: 38 mm
- Basic dynamic load rating: 135 kN
- Basic static load rating: 375 kN
51215-Thrust ball bearings
NSK 51215 Thrust ball bearings, In stock, Dimensions: 75 mm x 110 mm x 27 mm, Basic dynamic load rating: 78 kN, Static load rating: 209 kN.
- Brand: NSK
- Inside Diameter: 75 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 78 kN
- Basic static load rating: 209 kN

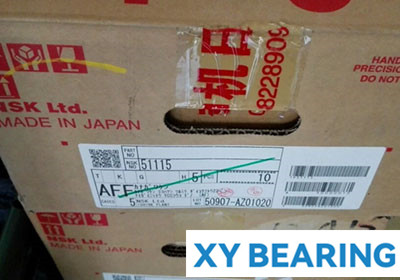

51115-Thrust ball bearings
NSK 51115 Thrust ball bearings, In stock, Dimensions: 75 mm x 100 mm x 19 mm, Basic dynamic load rating: 43.5 kN, Static load rating: 131 kN.
- Brand: NSK
- Inside Diameter: 75 mm
- Outside Diameter: 100 mm
- Width: 19 mm
- Basic dynamic load rating: 43.5 kN
- Basic static load rating: 131 kN
51113-Thrust ball bearings
NSK 51113 Thrust ball bearings, In stock, Dimensions: 65 mm x 90 mm x 18 mm, Basic dynamic load rating: 42 kN, Static load rating: 117 kN.
- Brand: NSK
- Inside Diameter: 65 mm
- Outside Diameter: 90 mm
- Width: 18 mm
- Basic dynamic load rating: 42 kN
- Basic static load rating: 117 kN

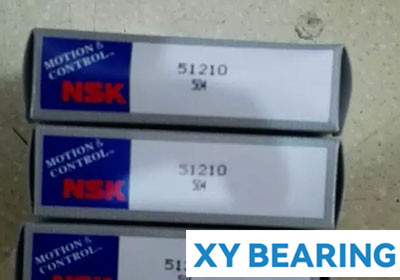

51210-Thrust ball bearings
NSK 51210 Thrust ball bearings, In stock, Dimensions: 50 mm x 78 mm x 22 mm, Basic dynamic load rating: 49 kN, Static load rating: 111 kN.
- Brand: NSK
- Inside Diameter: 50 mm
- Outside Diameter: 78 mm
- Width: 22 mm
- Basic dynamic load rating: 49 kN
- Basic static load rating: 111 kN
51110-Thrust ball bearings
NSK 51110 Thrust ball bearings, In stock, Dimensions: 50 mm x 70 mm x 14 mm, Basic dynamic load rating: 29 kN, Static load rating: 75.5 kN.
- Brand: NSK
- Inside Diameter: 50 mm
- Outside Diameter: 70 mm
- Width: 14 mm
- Basic dynamic load rating: 29 kN
- Basic static load rating: 75.5 kN

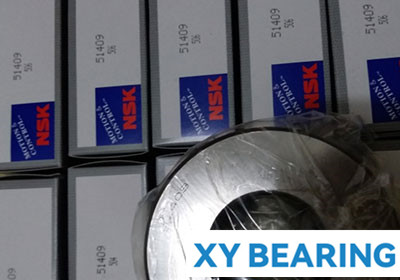

51409-Thrust ball bearings
NSK 51409 Thrust ball bearings, In stock, Dimensions: 45 mm x 100 mm x 39 mm, Basic dynamic load rating: 128 kN, Static load rating: 246 kN.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 39 mm
- Basic dynamic load rating: 128 kN
- Basic static load rating: 246 kN

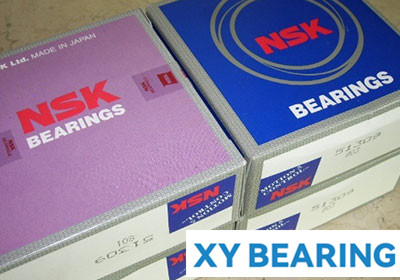

51309-Thrust ball bearings
NSK 51309 Thrust ball bearings, In stock, Dimensions: 45 mm x 85 mm x 28 mm, Basic dynamic load rating: 80.5 kN, Static load rating: 163 kN.
- Brand: NSK
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 28 mm
- Basic dynamic load rating: 80.5 kN
- Basic static load rating: 163 kN

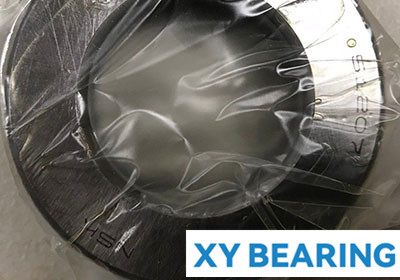

51207-Thrust ball bearings
NSK 51207 Thrust ball bearings, In stock, Dimensions: 35 mm x 62 mm x 18 mm, Basic dynamic load rating: 39.5 kN, Static load rating: 78 kN.
- Brand: NSK
- Inside Diameter: 35 mm
- Outside Diameter: 62 mm
- Width: 18 mm
- Basic dynamic load rating: 39.5 kN
- Basic static load rating: 78 kN
