FAG 54238-MP Thrust ball bearings
Also known as : 54238-MP
- Inside Diameter: 160 mm
- Outside Diameter: 270 mm
- Width: 116.4 mm
- Basic dynamic load rating: 335 kN
- Basic static load rating: 1170 kN
FAG 54238-MP
FAG 54238-MP details

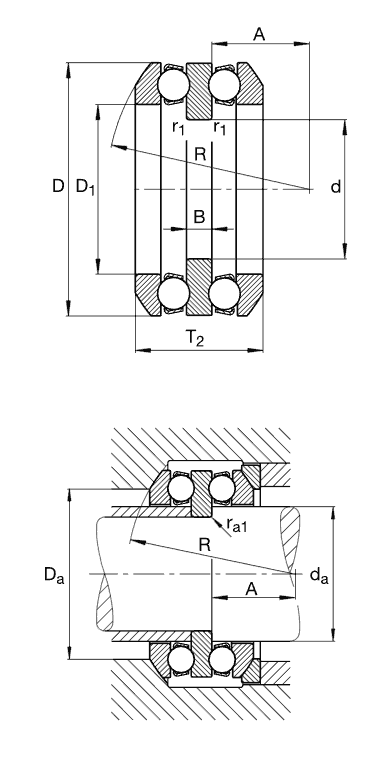

| Number | 54238-MP | |
|---|---|---|
| Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, double direction, with spherical housing locating washers, separable |
|
| d | 160mm | |
| D | 270mm | |
| T2 | 116,4mm | |
| A | 93,5mm | |
| B | 24mm | |
| D1 | 194,7mm | |
| Da max | 230mm | |
| da max | 190mm | |
| R | 200mm | |
| r1 min | 2mm | |
| ra max | 2mm | |
| ra1 max | 2mm | |
| rmin | 2mm | |
| m | 20kg | Mass |
| Ca | 335000N | Basic dynamic load rating, axial |
| C0a | 1170000N | Basic static load rating, axial |
| Cua | 35500N | Fatigue limit load, axial |
| nG | 15401/min | Limiting speed |
| nϑr | 19901/min | Reference speed |
| A | 7,2 | Minimum load factor |
