Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing.
Xin You Ya Bearing supplies rod ends with left or right-hand female or male threads.
GIL6-DO-Rod end joint
INA GIL6-DO Rod end joint, In stock, Dimensions: 6 mm x 21 mm x 40.5 mm, Basic dynamic load rating: 3.4 kN, Static load rating: 10.3 kN.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 21 mm
- Width: 40.5 mm
- Basic dynamic load rating: 3.4 kN
- Basic static load rating: 10.3 kN

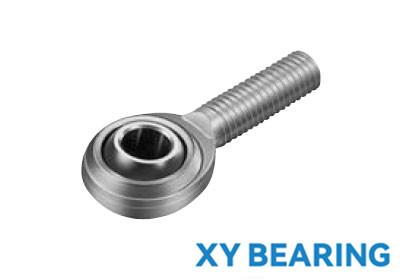

POS16EC-Rod end joint
IKO POS16EC Rod end joint, In stock, Dimensions: 16 mm x 38 mm x 85 mm, Basic dynamic load rating: 42 kN, Static load rating: 21.1 kN.
- Brand: IKO
- Inside Diameter: 16 mm
- Outside Diameter: 38 mm
- Width: 85 mm
- Basic dynamic load rating: 42 kN
- Basic static load rating: 21.1 kN
POS14EC-Rod end joint
IKO POS14EC Rod end joint, In stock, Dimensions: 14 mm x 34 mm x 77 mm, Basic dynamic load rating: 33.6 kN, Static load rating: 17.2 kN.
- Brand: IKO
- Inside Diameter: 14 mm
- Outside Diameter: 34 mm
- Width: 77 mm
- Basic dynamic load rating: 33.6 kN
- Basic static load rating: 17.2 kN
POS12EC-Rod end joint
IKO POS12EC Rod end joint, In stock, Dimensions: 12 mm x 30 mm x 69 mm, Basic dynamic load rating: 26.2 kN, Static load rating: 13.7 kN.
- Brand: IKO
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 69 mm
- Basic dynamic load rating: 26.2 kN
- Basic static load rating: 13.7 kN
POS10EC-Rod end joint
IKO POS10EC Rod end joint, In stock, Dimensions: 10 mm x 26 mm x 61 mm, Basic dynamic load rating: 19.6 kN, Static load rating: 10.5 kN.
- Brand: IKO
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 61 mm
- Basic dynamic load rating: 19.6 kN
- Basic static load rating: 10.5 kN
POS8EC-Rod end joint
IKO POS8EC Rod end joint, In stock, Dimensions: 8 mm x 22 mm x 53 mm, Basic dynamic load rating: 14 kN, Static load rating: 7.76 kN.
- Brand: IKO
- Inside Diameter: 8 mm
- Outside Diameter: 22 mm
- Width: 53 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 7.76 kN
POS6EC-Rod end joint
IKO POS6EC Rod end joint, In stock, Dimensions: 6 mm x 18 mm x 45 mm, Basic dynamic load rating: 8.41 kN, Static load rating: 4.73 kN.
- Brand: IKO
- Inside Diameter: 6 mm
- Outside Diameter: 18 mm
- Width: 45 mm
- Basic dynamic load rating: 8.41 kN
- Basic static load rating: 4.73 kN
POS5EC-Rod end joint
IKO POS5EC Rod end joint, In stock, Dimensions: 5 mm x 16 mm x 41 mm, Basic dynamic load rating: 6.54 kN, Static load rating: 3.34 kN.
- Brand: IKO
- Inside Diameter: 5 mm
- Outside Diameter: 16 mm
- Width: 41 mm
- Basic dynamic load rating: 6.54 kN
- Basic static load rating: 3.34 kN
POS4EC-Rod end joint
IKO POS4EC Rod end joint, In stock, Dimensions: 4 mm x 14 mm x 37 mm, Basic dynamic load rating: 4.95 kN, Static load rating: 2.06 kN.
- Brand: IKO
- Inside Diameter: 4 mm
- Outside Diameter: 14 mm
- Width: 37 mm
- Basic dynamic load rating: 4.95 kN
- Basic static load rating: 2.06 kN
POS3EC-Rod end joint
IKO POS3EC Rod end joint, In stock, Dimensions: 3 mm x 12 mm x 33 mm, Basic dynamic load rating: 3.5 kN, Static load rating: 1.22 kN.
- Brand: IKO
- Inside Diameter: 3 mm
- Outside Diameter: 12 mm
- Width: 33 mm
- Basic dynamic load rating: 3.5 kN
- Basic static load rating: 1.22 kN

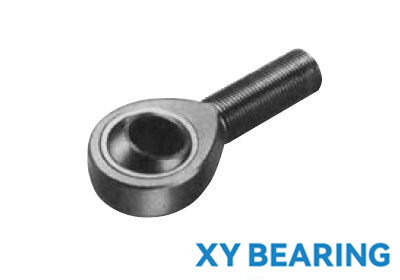

POSB16-Rod end joint
IKO POSB16 Rod end joint, In stock, Dimensions: 25.4 mm x 69.85 mm x 139.7 mm, Basic dynamic load rating: 59.3 kN, Static load rating: 112 kN.
- Brand: IKO
- Inside Diameter: 25.4 mm
- Outside Diameter: 69.85 mm
- Width: 139.7 mm
- Basic dynamic load rating: 59.3 kN
- Basic static load rating: 112 kN
POSB10-Rod end joint
IKO POSB10 Rod end joint, In stock, Dimensions: 15.875 mm x 38.1 mm x 85.73 mm, Basic dynamic load rating: 20 kN, Static load rating: 39.3 kN.
- Brand: IKO
- Inside Diameter: 15.875 mm
- Outside Diameter: 38.1 mm
- Width: 85.73 mm
- Basic dynamic load rating: 20 kN
- Basic static load rating: 39.3 kN
POSB6-Rod end joint
IKO POSB6 Rod end joint, In stock, Dimensions: 9.525 mm x 25.4 mm x 61.93 mm, Basic dynamic load rating: 9.23 kN, Static load rating: 21.6 kN.
- Brand: IKO
- Inside Diameter: 9.525 mm
- Outside Diameter: 25.4 mm
- Width: 61.93 mm
- Basic dynamic load rating: 9.23 kN
- Basic static load rating: 21.6 kN
POSB5-Rod end joint
IKO POSB5 Rod end joint, In stock, Dimensions: 7.938 mm x 22.23 mm x 58.72 mm, Basic dynamic load rating: 6.8 kN, Static load rating: 14.2 kN.
- Brand: IKO
- Inside Diameter: 7.938 mm
- Outside Diameter: 22.23 mm
- Width: 58.72 mm
- Basic dynamic load rating: 6.8 kN
- Basic static load rating: 14.2 kN
POSB2-Rod end joint
IKO POSB2 Rod end joint, In stock, Dimensions: 3.175 mm x 11.91 mm x 29.77 mm, Basic dynamic load rating: 1.85 kN, Static load rating: 2.16 kN.
- Brand: IKO
- Inside Diameter: 3.175 mm
- Outside Diameter: 11.91 mm
- Width: 29.77 mm
- Basic dynamic load rating: 1.85 kN
- Basic static load rating: 2.16 kN

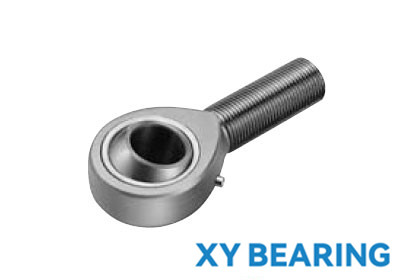

POS28-Rod end joint
IKO POS28 Rod end joint, In stock, Dimensions: 28 mm x 66 mm x 136 mm, Basic dynamic load rating: 58.4 kN, Static load rating: 87 kN.
- Brand: IKO
- Inside Diameter: 28 mm
- Outside Diameter: 66 mm
- Width: 136 mm
- Basic dynamic load rating: 58.4 kN
- Basic static load rating: 87 kN
POS22-Rod end joint
IKO POS22 Rod end joint, In stock, Dimensions: 22 mm x 50 mm x 109 mm, Basic dynamic load rating: 37.4 kN, Static load rating: 41.7 kN.
- Brand: IKO
- Inside Diameter: 22 mm
- Outside Diameter: 50 mm
- Width: 109 mm
- Basic dynamic load rating: 37.4 kN
- Basic static load rating: 41.7 kN
POS20-Rod end joint
IKO POS20 Rod end joint, In stock, Dimensions: 20 mm x 46 mm x 101 mm, Basic dynamic load rating: 30.8 kN, Static load rating: 35.5 kN.
- Brand: IKO
- Inside Diameter: 20 mm
- Outside Diameter: 46 mm
- Width: 101 mm
- Basic dynamic load rating: 30.8 kN
- Basic static load rating: 35.5 kN
POS18-Rod end joint
IKO POS18 Rod end joint, In stock, Dimensions: 18 mm x 42 mm x 93 mm, Basic dynamic load rating: 25.7 kN, Static load rating: 30.2 kN.
- Brand: IKO
- Inside Diameter: 18 mm
- Outside Diameter: 42 mm
- Width: 93 mm
- Basic dynamic load rating: 25.7 kN
- Basic static load rating: 30.2 kN
POS4-Rod end joint
IKO POS4 Rod end joint, In stock, Dimensions: 4 mm x 14 mm x 37 mm, Basic dynamic load rating: 2.48 kN, Static load rating: 2.06 kN.
- Brand: IKO
- Inside Diameter: 4 mm
- Outside Diameter: 14 mm
- Width: 37 mm
- Basic dynamic load rating: 2.48 kN
- Basic static load rating: 2.06 kN
