IKO POS16EC Rod end joint
Also known as : POS16EC
- Inside Diameter: 16 mm
- Outside Diameter: 38 mm
- Width: 85 mm
- Basic dynamic load rating: 42 kN
- Basic static load rating: 21.1 kN
IKO POS16EC

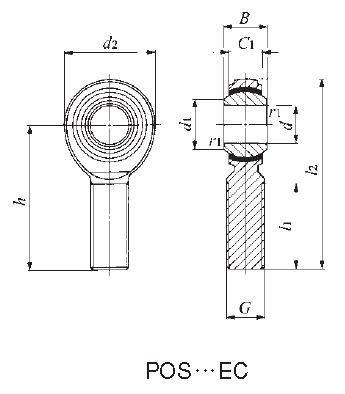

IKO POS16EC details
| Identification number | POS16EC |
|---|---|
| Type | Maintenance-free type PILLOBALL Rod ends |
| Mass | 185 g |
| d | 16 mm |
| Thread G | M16X2 |
| d2 | 38 mm |
| C1 | 15 mm |
| B | 21 mm |
| d1 | 19.4 mm |
| l2 | 85 mm |
| h | 66 mm |
| l1 | 40 mm |
| r1s min | 0.2 mm |
| Ball dia. | 28.575 mm |
| Dynamic load capacity | 42 kN |
| Static load capacity | 42 kN |
