INA GAR70-DO-2RS

INA GAR70-DO-2RS Rod end joint

Also known as : GAR70-DO-2RS

Inside Diameter: 70 mm
Outside Diameter: 160 mm
Width: 315 mm
Basic dynamic load rating: 313 kN
Basic static load rating: 564 kN

INA GAR70-DO-2RS

INA GAR70-DO-2RS details

Number	GAR70-DO-2RS

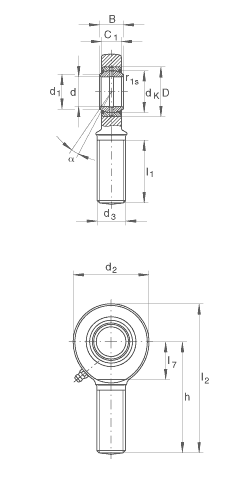

Type	Rod ends with external thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread
d	70 mm	Tolerance: 0/-0,015
d₂	160 mm
l₂	315 mm
B	49 mm	Tolerance: 0/-0,15
C₁	42 mm
D	105 mm
d₁	77,8 mm
d₃	M56x4
d_K	92 mm
h	235 mm
l₁	125 mm
l₇	87 mm
r_{1s min}	1 mm	Chamfer dimension
α	6 °
m	8,2 kg	Mass
C_r	313000 N	Basic dynamic load rating, radial
C_0r	564000 N	Basic static load rating, radial Basic load rating of housing
