INA GAR40-DO-2RS

INA GAR40-DO-2RS Rod end joint

Also known as : GAR40-DO-2RS

Inside Diameter: 40 mm
Outside Diameter: 92 mm
Width: 196 mm
Basic dynamic load rating: 99.1 kN
Basic static load rating: 194 kN

INA GAR40-DO-2RS

INA GAR40-DO-2RS details

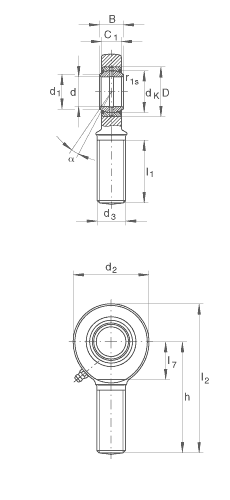

Number	GAR40-DO-2RS
Type	Rod ends with external thread, requiring maintenance, to DIN ISO 12 240-4, lip seals on both sides, right hand thread
d	40 mm	Tolerance: 0/-0,012
d₂	92 mm
l₂	196 mm
B	28 mm	Tolerance: 0/-0,12
C₁	22,6 mm
D	62 mm
d₁	45 mm
d₃	M39x3
d_K	53 mm
h	150 mm
l₁	86 mm
l₇	48 mm
r_{1s min}	0,6 mm	Chamfer dimension
α	7 °
m	1,8 kg	Mass
C_r	99100 N	Basic dynamic load rating, radial
C_0r	194000 N	Basic static load rating, radial Basic load rating of housing
