INA GAR25-DO

INA GAR25-DO Rod end joint

Also known as : GAR25-DO

Inside Diameter: 25 mm
Outside Diameter: 64 mm
Width: 126 mm
Basic dynamic load rating: 48.3 kN
Basic static load rating: 88.3 kN

INA GAR25-DO

INA GAR25-DO details

Number	GAR25-DO
Type	Rod ends with external thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread

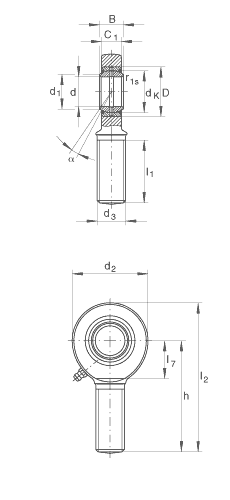

d	25 mm	Tolerance: 0/-0,01
d₂	64 mm
l₂	126 mm
B	20 mm	Tolerance: 0/-0,12
C₁	17 mm
D	42 mm
d₁	29,3 mm
d₃	M24x2
d_K	35,5 mm
h	94 mm
l₁	53 mm
l₇	32 mm
r_{1s min}	0,6 mm	Chamfer dimension
α	7 °
m	0,56 kg	Mass
C_r	48300 N	Basic dynamic load rating, radial
C_0r	88300 N	Basic static load rating, radial Basic load rating of housing
