INA GAL40-UK-2RS Rod end joint
Also known as : GAL40-UK-2RS
- Inside Diameter: 40 mm
- Outside Diameter: 92 mm
- Width: 196 mm
- Basic dynamic load rating: 277 kN
- Basic static load rating: 194 kN
INA GAL40-UK-2RS
INA GAL40-UK-2RS details

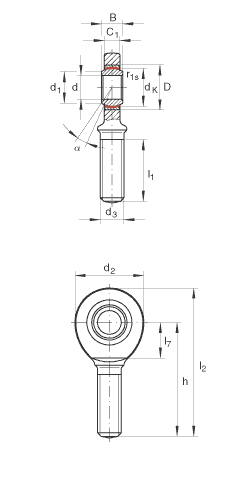

| Number | GAL40-UK-2RS | |
|---|---|---|
| Type | Rod ends with external thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, left hand thread | |
| d | 40 mm | Tolerance: 0/-0,012 |
| d2 | 92 mm | |
| l2 | 196 mm | |
| B | 28 mm | Tolerance: 0/-0,12 |
| C1 | 23 mm | |
| D | 62 mm | |
| d1 | 45 mm | |
| d3 | M39x3 | |
| dK | 53 mm | |
| h | 150 mm | |
| l1 | 86 mm | |
| l7 | 48 mm | |
| r1s min | 0,6 mm | Chamfer dimension |
| α | 7 ° | |
| m | 1,8 kg | Mass |
| Cr | 277000 N | Basic dynamic load rating, radial |
| C0r | 194000 N | Basic static load rating, radial Basic load rating of housing In rod ends with the sliding material ELGOGLIDE, the basic static load rating C 0r of the housing is less than the basic dynamic load rating C r of the bearing. |
