Rod ends consist of an eye-shaped head with integral shank that forms a housing for a spherical plain bearing.
Xin You Ya Bearing supplies rod ends with left or right-hand female or male threads.

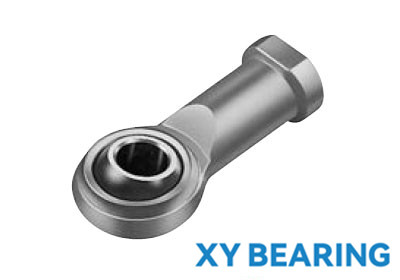

PHS12EC-Rod end joint
IKO PHS12EC Rod end joint, In stock, Dimensions: 12 mm x 30 mm x 65 mm, Basic dynamic load rating: 26.2 kN, Static load rating: 13.7 kN.
- Brand: IKO
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 65 mm
- Basic dynamic load rating: 26.2 kN
- Basic static load rating: 13.7 kN

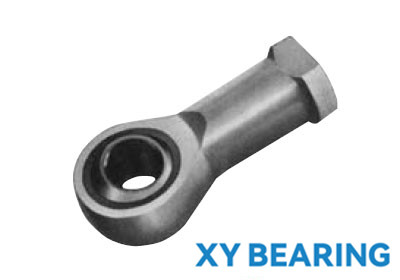

PHSB10-Rod end joint
IKO PHSB10 Rod end joint, In stock, Dimensions: 15.875 mm x 38.1 mm x 82.55 mm, Basic dynamic load rating: 20 kN, Static load rating: 39.3 kN.
- Brand: IKO
- Inside Diameter: 15.875 mm
- Outside Diameter: 38.1 mm
- Width: 82.55 mm
- Basic dynamic load rating: 20 kN
- Basic static load rating: 39.3 kN

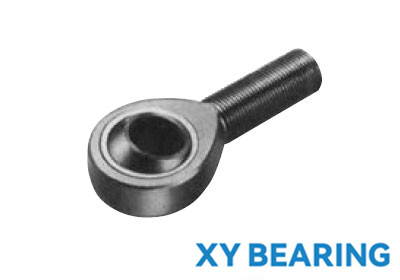

PHSB5-Rod end joint
IKO PHSB5 Rod end joint, In stock, Dimensions: 7.938 mm x 22.23 mm x 46.02 mm, Basic dynamic load rating: 6.8 kN, Static load rating: 16.5 kN.
- Brand: IKO
- Inside Diameter: 7.938 mm
- Outside Diameter: 22.23 mm
- Width: 46.02 mm
- Basic dynamic load rating: 6.8 kN
- Basic static load rating: 16.5 kN
PHSB4-Rod end joint
IKO PHSB4 Rod end joint, In stock, Dimensions: 6.35 mm x 19.05 mm x 42.85 mm, Basic dynamic load rating: 4.59 kN, Static load rating: 13.2 kN.
- Brand: IKO
- Inside Diameter: 6.35 mm
- Outside Diameter: 19.05 mm
- Width: 42.85 mm
- Basic dynamic load rating: 4.59 kN
- Basic static load rating: 13.2 kN
PHSB3-Rod end joint
IKO PHSB3 Rod end joint, In stock, Dimensions: 4.826 mm x 15.88 mm x 34.93 mm, Basic dynamic load rating: 3.45 kN, Static load rating: 9.09 kN.
- Brand: IKO
- Inside Diameter: 4.826 mm
- Outside Diameter: 15.88 mm
- Width: 34.93 mm
- Basic dynamic load rating: 3.45 kN
- Basic static load rating: 9.09 kN
PHSB2.5-Rod end joint
IKO PHSB2.5 Rod end joint, In stock, Dimensions: 3.967 mm x 14.27 mm x 29.36 mm, Basic dynamic load rating: 2.6 kN, Static load rating: 8.21 kN.
- Brand: IKO
- Inside Diameter: 3.967 mm
- Outside Diameter: 14.27 mm
- Width: 29.36 mm
- Basic dynamic load rating: 2.6 kN
- Basic static load rating: 8.21 kN

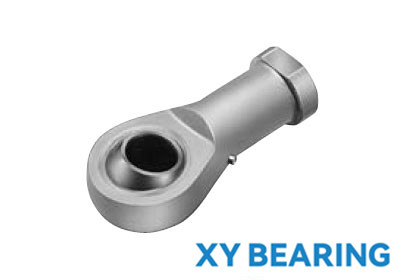

PHSA16-Rod end joint
IKO PHSA16 Rod end joint, In stock, Dimensions: 16 mm x 40 mm x 84 mm, Basic dynamic load rating: 23.9 kN, Static load rating: 0 kN.
- Brand: IKO
- Inside Diameter: 16 mm
- Outside Diameter: 40 mm
- Width: 84 mm
- Basic dynamic load rating: 23.9 kN
- Basic static load rating: 0 kN

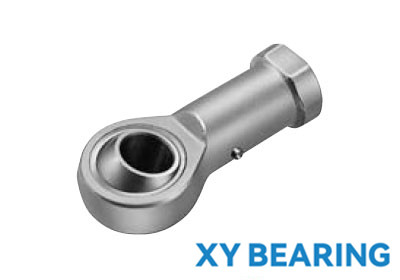

PHS22-Rod end joint
IKO PHS22 Rod end joint, In stock, Dimensions: 22 mm x 50 mm x 109 mm, Basic dynamic load rating: 37.4 kN, Static load rating: 41.7 kN.
- Brand: IKO
- Inside Diameter: 22 mm
- Outside Diameter: 50 mm
- Width: 109 mm
- Basic dynamic load rating: 37.4 kN
- Basic static load rating: 41.7 kN
PHS4-Rod end joint
IKO PHS4 Rod end joint, In stock, Dimensions: 4 mm x 14 mm x 31 mm, Basic dynamic load rating: 2.48 kN, Static load rating: 4.68 kN.
- Brand: IKO
- Inside Diameter: 4 mm
- Outside Diameter: 14 mm
- Width: 31 mm
- Basic dynamic load rating: 2.48 kN
- Basic static load rating: 4.68 kN
PHS3-Rod end joint
IKO PHS3 Rod end joint, In stock, Dimensions: 3 mm x 12 mm x 27 mm, Basic dynamic load rating: 1.75 kN, Static load rating: 3.67 kN.
- Brand: IKO
- Inside Diameter: 3 mm
- Outside Diameter: 12 mm
- Width: 27 mm
- Basic dynamic load rating: 1.75 kN
- Basic static load rating: 3.67 kN

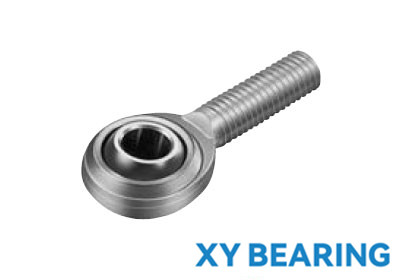

POS22EC-Rod end joint
IKO POS22EC Rod end joint, In stock, Dimensions: 22 mm x 50 mm x 109 mm, Basic dynamic load rating: 74.7 kN, Static load rating: 36.4 kN.
- Brand: IKO
- Inside Diameter: 22 mm
- Outside Diameter: 50 mm
- Width: 109 mm
- Basic dynamic load rating: 74.7 kN
- Basic static load rating: 36.4 kN
POS20EC-Rod end joint
IKO POS20EC Rod end joint, In stock, Dimensions: 20 mm x 46 mm x 101 mm, Basic dynamic load rating: 61.6 kN, Static load rating: 30 kN.
- Brand: IKO
- Inside Diameter: 20 mm
- Outside Diameter: 46 mm
- Width: 101 mm
- Basic dynamic load rating: 61.6 kN
- Basic static load rating: 30 kN
POS18EC-Rod end joint
IKO POS18EC Rod end joint, In stock, Dimensions: 18 mm x 42 mm x 93 mm, Basic dynamic load rating: 51.4 kN, Static load rating: 25.1 kN.
- Brand: IKO
- Inside Diameter: 18 mm
- Outside Diameter: 42 mm
- Width: 93 mm
- Basic dynamic load rating: 51.4 kN
- Basic static load rating: 25.1 kN
POSB4-Rod end joint
IKO POSB4 Rod end joint, In stock, Dimensions: 6.35 mm x 19.05 mm x 49.2 mm, Basic dynamic load rating: 4.59 kN, Static load rating: 8.87 kN.
- Brand: IKO
- Inside Diameter: 6.35 mm
- Outside Diameter: 19.05 mm
- Width: 49.2 mm
- Basic dynamic load rating: 4.59 kN
- Basic static load rating: 8.87 kN
POSB2.5-Rod end joint
IKO POSB2.5 Rod end joint, In stock, Dimensions: 3.967 mm x 14.27 mm x 35.71 mm, Basic dynamic load rating: 2.6 kN, Static load rating: 3.37 kN.
- Brand: IKO
- Inside Diameter: 3.967 mm
- Outside Diameter: 14.27 mm
- Width: 35.71 mm
- Basic dynamic load rating: 2.6 kN
- Basic static load rating: 3.37 kN

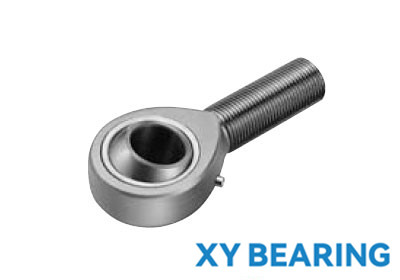

POS30-Rod end joint
IKO POS30 Rod end joint, In stock, Dimensions: 30 mm x 70 mm x 145 mm, Basic dynamic load rating: 62.3 kN, Static load rating: 92.2 kN.
- Brand: IKO
- Inside Diameter: 30 mm
- Outside Diameter: 70 mm
- Width: 145 mm
- Basic dynamic load rating: 62.3 kN
- Basic static load rating: 92.2 kN
POS6-Rod end joint
IKO POS6 Rod end joint, In stock, Dimensions: 6 mm x 18 mm x 45 mm, Basic dynamic load rating: 4.2 kN, Static load rating: 4.73 kN.
- Brand: IKO
- Inside Diameter: 6 mm
- Outside Diameter: 18 mm
- Width: 45 mm
- Basic dynamic load rating: 4.2 kN
- Basic static load rating: 4.73 kN
POS5-Rod end joint
IKO POS5 Rod end joint, In stock, Dimensions: 5 mm x 16 mm x 41 mm, Basic dynamic load rating: 3.27 kN, Static load rating: 3.34 kN.
- Brand: IKO
- Inside Diameter: 5 mm
- Outside Diameter: 16 mm
- Width: 41 mm
- Basic dynamic load rating: 3.27 kN
- Basic static load rating: 3.34 kN
POS3-Rod end joint
IKO POS3 Rod end joint, In stock, Dimensions: 3 mm x 12 mm x 33 mm, Basic dynamic load rating: 1.75 kN, Static load rating: 1.22 kN.
- Brand: IKO
- Inside Diameter: 3 mm
- Outside Diameter: 12 mm
- Width: 33 mm
- Basic dynamic load rating: 1.75 kN
- Basic static load rating: 1.22 kN
PHS22EC-Rod end joint
IKO PHS22EC Rod end joint, In stock, Dimensions: 22 mm x 50 mm x 109 mm, Basic dynamic load rating: 74.7 kN, Static load rating: 36.4 kN.
- Brand: IKO
- Inside Diameter: 22 mm
- Outside Diameter: 50 mm
- Width: 109 mm
- Basic dynamic load rating: 74.7 kN
- Basic static load rating: 36.4 kN
