IKO POS28 Rod end joint
Also known as : POS28
- Inside Diameter: 28 mm
- Outside Diameter: 66 mm
- Width: 136 mm
- Basic dynamic load rating: 58.4 kN
- Basic static load rating: 87 kN
IKO POS28
IKO POS28 details

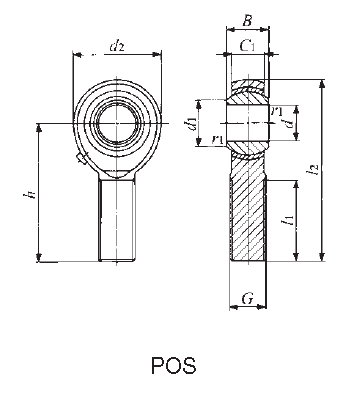

| Identification number | POS28 |
|---|---|
| Type | Lubrication type PILLOBALL Rod ends |
| Mass | 875 g |
| d | 28 mm |
| Thread G | M27X2 |
| d2 | 66 mm |
| C1 | 25 mm |
| B | 35 mm |
| d1 | 32.3 mm |
| l2 | 136 mm |
| h | 103 mm |
| l1 | 62 mm |
| r1s min | 0.6 mm |
| Ball dia. | 47.625 mm |
| Dynamic load capacity | 58.4 kN |
| Static load capacity | 58.4 kN |
IKO POS28 bearing cross reference
GAL40-UK-2RS
28 mmx 66 mmx136 mm
GAR70-DO-2RS
28 mmx 66 mmx136 mm
GAR40-DO-2RS
28 mmx 66 mmx136 mm
GAL45-DO-2RS
28 mmx 66 mmx136 mm
GAL35-DO-2RS
28 mmx 66 mmx136 mm
GAR17-UK
28 mmx 66 mmx136 mm
GAR12-UK
28 mmx 66 mmx136 mm
GAR6-UK
28 mmx 66 mmx136 mm
GAL30-UK
28 mmx 66 mmx136 mm
GAL12-UK
28 mmx 66 mmx136 mm
GAL6-UK
28 mmx 66 mmx136 mm
