Xin You Ya Bearing supplies spherical plain bearings, rod ends, bushings, thrust washers and trips. The brand include SKF, NSK, INA, TIMKEN, IKO.
Plain bearings are manufactured in various designs and with different sliding contact surface combinations. Each design and combination has characteristic properties which makes it particularly suitable for certain applications.
Plain bearings VS ball bearings, VS roller bearing
Many applications require spherical bearings that are suitable for oscillating movements and that can accommodate misalignment. Rolling bearings only partly fulfil these requirements as they are generally designed for continuous rotation and can only accommodate limited misalignment.
Plain bearings can provide an economical solution to these challenges.

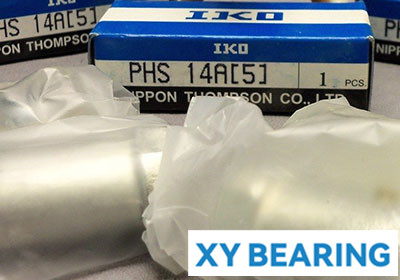

PHS14_Rod end joint
PHS14_Rod end joint_IKO Dimensions: 14 mm x 34 mm x 74 mm, Limiting Speed: 16.8 kN r/min, Reference speed: 20.9 kNr/min.
- Brand: IKO
- Inside Diameter: 14 mm
- Outside Diameter: 34 mm
- Width: 74 mm
- Basic dynamic load rating: 16.8 kN
- Basic static load rating: 20.9 kN

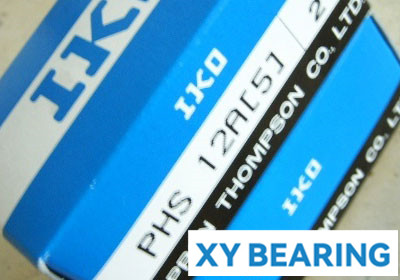

PHS12_Rod end joint
PHS12_Rod end joint_IKO Dimensions: 12 mm x 30 mm x 65 mm, Limiting Speed: 13.1 kN r/min, Reference speed: 16.9 kNr/min.
- Brand: IKO
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 65 mm
- Basic dynamic load rating: 13.1 kN
- Basic static load rating: 16.9 kN

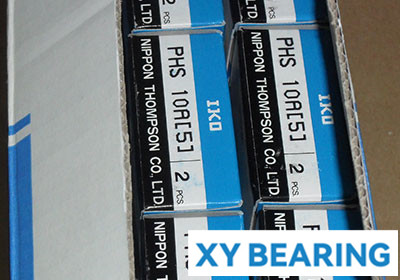

PHS10_Rod end joint
PHS10_Rod end joint_IKO Dimensions: 10 mm x 26 mm x 56 mm, Limiting Speed: 9.81 kN r/min, Reference speed: 13.3 kNr/min.
- Brand: IKO
- Inside Diameter: 10 mm
- Outside Diameter: 26 mm
- Width: 56 mm
- Basic dynamic load rating: 9.81 kN
- Basic static load rating: 13.3 kN

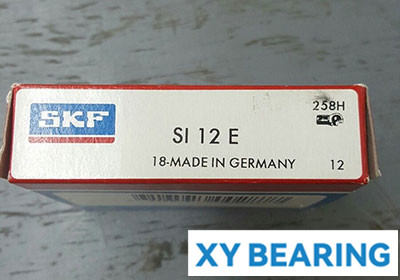

SI12E_Rod end joint
SI12E_Rod end joint_SKF Dimensions: 12 mm x 35 mm x 69 mm, Limiting Speed: 10.8 kN r/min, Reference speed: 25.5 kNr/min.
- Brand: SKF
- Inside Diameter: 12 mm
- Outside Diameter: 35 mm
- Width: 69 mm
- Basic dynamic load rating: 10.8 kN
- Basic static load rating: 25.5 kN

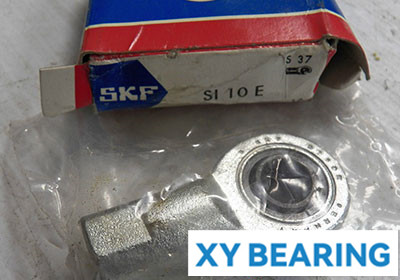

SI10E_Rod end joint
SI10E_Rod end joint_SKF Dimensions: 10 mm x 30 mm x 60 mm, Limiting Speed: 8.15 kN r/min, Reference speed: 3250 kNr/min.
- Brand: SKF
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 60 mm
- Basic dynamic load rating: 8.15 kN
- Basic static load rating: 3250 kN

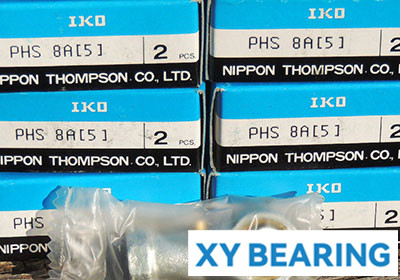

PHS8_Rod end joint
PHS8_Rod end joint_IKO Dimensions: 8 mm x 22 mm x 47 mm, Limiting Speed: 7.01 kN r/min, Reference speed: 10.2 kNr/min.
- Brand: IKO
- Inside Diameter: 8 mm
- Outside Diameter: 22 mm
- Width: 47 mm
- Basic dynamic load rating: 7.01 kN
- Basic static load rating: 10.2 kN

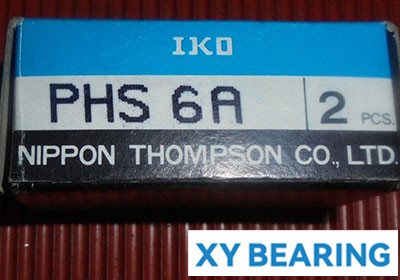

PHS6_Rod end joint
PHS6_Rod end joint_IKO Dimensions: 6 mm x 18 mm x 39 mm, Limiting Speed: 4.2 kN r/min, Reference speed: 6.91 kNr/min.
- Brand: IKO
- Inside Diameter: 6 mm
- Outside Diameter: 18 mm
- Width: 39 mm
- Basic dynamic load rating: 4.2 kN
- Basic static load rating: 6.91 kN

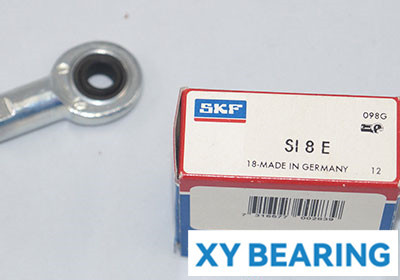

SI8E_Rod end joint
SI8E_Rod end joint_SKF Dimensions: 8 mm x 25 mm x 50 mm, Limiting Speed: 5.5 kN r/min, Reference speed: 12.9 kNr/min.
- Brand: SKF
- Inside Diameter: 8 mm
- Outside Diameter: 25 mm
- Width: 50 mm
- Basic dynamic load rating: 5.5 kN
- Basic static load rating: 12.9 kN

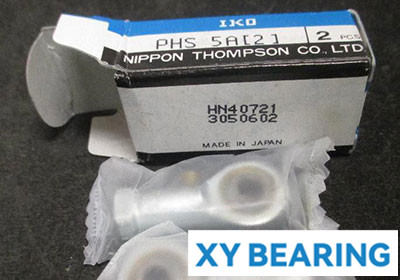

PHS5_Rod end joint
PHS5_Rod end joint_IKO Dimensions: 5 mm x 16 mm x 35 mm, Limiting Speed: 3.27 kN r/min, Reference speed: 5.73 kNr/min.
- Brand: IKO
- Inside Diameter: 5 mm
- Outside Diameter: 16 mm
- Width: 35 mm
- Basic dynamic load rating: 3.27 kN
- Basic static load rating: 5.73 kN

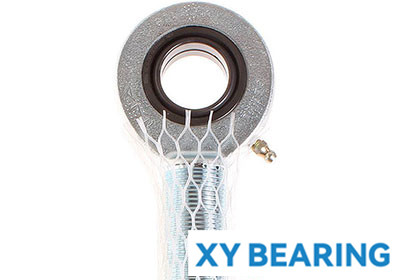

GAL30-DO_Rod end joint
GAL30-DO_Rod end joint_INA Dimensions: 30 mm x 73 mm x 146.5 mm, Limiting Speed: 62.3 kN r/min, Reference speed: 119 kNr/min.
- Brand: INA
- Inside Diameter: 30 mm
- Outside Diameter: 73 mm
- Width: 146.5 mm
- Basic dynamic load rating: 62.3 kN
- Basic static load rating: 119 kN
