IKO PHS12 Rod end joint
Also known as : PHS12
- Inside Diameter: 12 mm
- Outside Diameter: 30 mm
- Width: 65 mm
- Basic dynamic load rating: 13.1 kN
- Basic static load rating: 16.9 kN
IKO PHS12

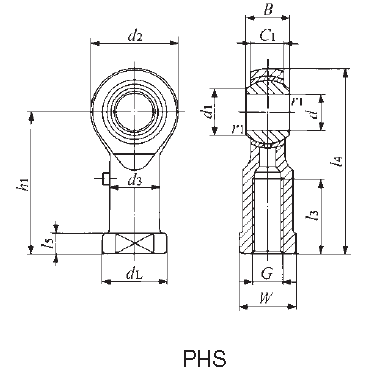

IKO PHS12 details
| Identification number | PHS12 |
|---|---|
| Type | Lubrication type PILLOBALLRod ends |
| Mass | 107 g |
| d | 12 mm |
| Thread G | M12X1.75 |
| d2 | 30 mm |
| C1 | 12 mm |
| B | 16 mm |
| d1 | 15.4 mm |
| l4 | 65 mm |
| h1 | 50 mm |
| l3 | 24 mm |
| l5 | 6.5 mm |
| W | 19 mm |
| d3 | 17.5 mm |
| dL | 22 mm |
| r1s min | 0.2 mm |
| Ball dia. | 22.225 mm |
| Dynamic load capacity | 13.1 kN |
| Static load capacity | 16.9 kN |
IKO PHS12 bearing cross reference
GAL40-UK-2RS
12 mmx 30 mmx65 mm
GAR70-DO-2RS
12 mmx 30 mmx65 mm
GAR40-DO-2RS
12 mmx 30 mmx65 mm
GAL45-DO-2RS
12 mmx 30 mmx65 mm
GAL35-DO-2RS
12 mmx 30 mmx65 mm
GAR17-UK
12 mmx 30 mmx65 mm
GAR12-UK
12 mmx 30 mmx65 mm
GAR6-UK
12 mmx 30 mmx65 mm
GAL30-UK
12 mmx 30 mmx65 mm
GAL12-UK
12 mmx 30 mmx65 mm
GAL6-UK
12 mmx 30 mmx65 mm
