IKO SB12A Spherical Plain Bearing
Also known as : SB12A
- Inside Diameter: 12 mm
- Outside Diameter: 22 mm
- Width: 11 mm
- Basic dynamic load rating: 15.9 kN
- Basic static load rating: 95.3 kN
IKO SB12A

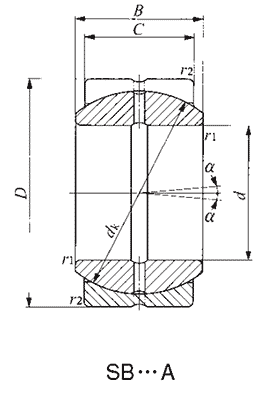

IKO SB12A details
| Identification number | SB12A |
|---|---|
| Type | Spherical plain bearings |
| Mass | 0.019 kg |
| d | 12 mm |
| D | 22 mm |
| B | 11 |
| C | 9 mm |
| dk | 18 mm |
| rs min | 0.3 mm |
| Permissible tilting angle degree | 7 mm |
| Dynamic load capacity | 15.9 kN |
| Static load capacity | 95.3 kN |
IKO SB12A bearing cross reference
GE160-AX
12 mmx 22 mmx 11 mm
GE140-AX
12 mmx 22 mmx 11 mm
GE70-AX
12 mmx 22 mmx 11 mm
GE60-AX
12 mmx 22 mmx 11 mm
GE50-AX
12 mmx 22 mmx 11 mm
GE40-AX
12 mmx 22 mmx 11 mm
GE30-AX
12 mmx 22 mmx 11 mm
GE25-AX
12 mmx 22 mmx 11 mm
GE17-AX
12 mmx 22 mmx 11 mm
GE15-AX
12 mmx 22 mmx 11 mm
GE10-AX
12 mmx 22 mmx 11 mm
