INA GE15-AX Spherical Plain Bearing
Also known as : GE15-AX
- Inside Diameter: 15 mm
- Outside Diameter: 42 mm
- Width: 15 mm
- Basic dynamic load rating: 52.2 kN
- Basic static load rating: 261 kN
INA GE15-AX
INA GE15-AX details

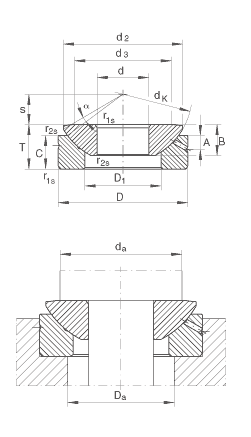

| Number | GE15-AX | |
|---|---|---|
| Type | Spherical plain bearings | |
| d | 15 mm | Tolerance: 0/-0,008 |
| D | 42 mm | Tolerance: 0/-0,011 |
| T | 15 mm | Tolerance: 0/-0,4 |
| A | 5 mm | |
| B | 10,7 mm | Tolerance: 0/-0,24 |
| C | 11 mm | Tolerance: 0/-0,24 |
| D1 | 24 mm | |
| Da min | 26 mm | |
| d3 | 29 mm | |
| da max | 29 mm | |
| dK | 45 mm | |
| r1s min | 0,6 mm | Chamfer dimension |
| r2s min | 0,2 mm | Chamfer dimension |
| s | 10 mm | |
| α | 7 ° | |
| m | 0,12 kg | Mass |
| Ca | 52200 N | Basic dynamic load rating, axial |
| C0a | 261000 N | Basic static load rating, axial |
