Ball bearings come in a wide variety of types, designs, series and sizes. Ball bearing is a type of rolling-element bearing that uses balls to maintain the separation between the moving parts of the bearing. A ball bearing can be highly effective at reducing friction between two parts that need to move freely.
Brand: SKF, NSK, FAG, INA, NTN, TIMKEN, KAYDON, NMB, DEBOT
6321C3_Deep groove ball bearings
6321C3_Deep groove ball bearings_NTN Dimensions: 105 mm x 225 mm x 49 mm, Limiting Speed: 184 kN r/min, Reference speed: 153 kNr/min.
- Brand: NTN
- Inside Diameter: 105 mm
- Outside Diameter: 225 mm
- Width: 49 mm
- Basic dynamic load rating: 184 kN
- Basic static load rating: 153 kN
6319C3_Deep groove ball bearings
6319C3_Deep groove ball bearings_NTN Dimensions: 95 mm x 200 mm x 45 mm, Limiting Speed: 153 kN r/min, Reference speed: 119 kNr/min.
- Brand: NTN
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 45 mm
- Basic dynamic load rating: 153 kN
- Basic static load rating: 119 kN
6216C3_Deep groove ball bearings
6216C3_Deep groove ball bearings_NTN Dimensions: 80 mm x 140 mm x 26 mm, Limiting Speed: 72.5 kN r/min, Reference speed: 53 kNr/min.
- Brand: NTN
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 26 mm
- Basic dynamic load rating: 72.5 kN
- Basic static load rating: 53 kN
6314C3_Deep groove ball bearings
6314C3_Deep groove ball bearings_NTN Dimensions: 70 mm x 150 mm x 35 mm, Limiting Speed: 104 kN r/min, Reference speed: 68 kNr/min.
- Brand: NTN
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 35 mm
- Basic dynamic load rating: 104 kN
- Basic static load rating: 68 kN
6317_Deep groove ball bearings
6317_Deep groove ball bearings_NTN Dimensions: 85 mm x 180 mm x 41 mm, Limiting Speed: 133 kN r/min, Reference speed: 97 kNr/min.
- Brand: NTN
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 41 mm
- Basic dynamic load rating: 133 kN
- Basic static load rating: 97 kN
6411_Deep groove ball bearings
6411_Deep groove ball bearings_NTN Dimensions: 55 mm x 140 mm x 33 mm, Limiting Speed: 89 kN r/min, Reference speed: 54 kNr/min.
- Brand: NTN
- Inside Diameter: 55 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 89 kN
- Basic static load rating: 54 kN
6413C3_Deep groove ball bearings
6413C3_Deep groove ball bearings_NTN Dimensions: 65 mm x 160 mm x 37 mm, Limiting Speed: 111 kN r/min, Reference speed: 72.5 kNr/min.
- Brand: NTN
- Inside Diameter: 65 mm
- Outside Diameter: 160 mm
- Width: 37 mm
- Basic dynamic load rating: 111 kN
- Basic static load rating: 72.5 kN

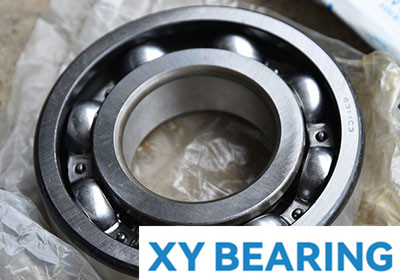

6311C3_Deep groove ball bearings
6311C3_Deep groove ball bearings_NTN Dimensions: 55 mm x 120 mm x 29 mm, Limiting Speed: 71.5 kN r/min, Reference speed: 45 kNr/min.
- Brand: NTN
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 29 mm
- Basic dynamic load rating: 71.5 kN
- Basic static load rating: 45 kN
6210C3_Deep groove ball bearings
6210C3_Deep groove ball bearings_NTN Dimensions: 50 mm x 90 mm x 20 mm, Limiting Speed: 35 kN r/min, Reference speed: 23.2 kNr/min.
- Brand: NTN
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 35 kN
- Basic static load rating: 23.2 kN
6212_Deep groove ball bearings
6212_Deep groove ball bearings_NTN Dimensions: 60 mm x 110 mm x 22 mm, Limiting Speed: 52.5 kN r/min, Reference speed: 36 kNr/min.
- Brand: NTN
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 22 mm
- Basic dynamic load rating: 52.5 kN
- Basic static load rating: 36 kN
