NSK 51214 Thrust ball bearings
Also known as : 51214
- Inside Diameter: 70 mm
- Outside Diameter: 105 mm
- Width: 27 mm
- Basic dynamic load rating: 74 kN
- Basic static load rating: 189 kN
NSK 51214

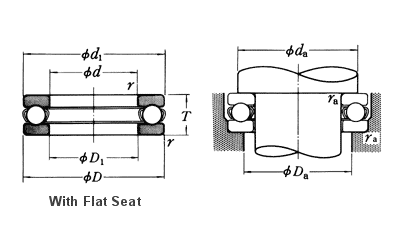

NSK 51214 details
| model | 51214 |
|---|---|
| d | 70 mm |
| D | 105 mm |
| T | 27 mm |
| d1 | 105 mm |
| D1 | 72 mm |
| rmin. | 1.0 mm |
| Ca | 74000 N |
| C0a | 189000 N |
| Limiting speeds | 1900 min-1 (Grease) |
| Limiting speeds | 2800 min-1 (Oil) |
| da | 91 mm |
| Da | 84 mm |
| ra | 1.0 mm |
| Mass | 0.793 kg (approx.) |
NSK 51214 bearing cross reference
D17-A1
70 mmx 105 mmx27 mm
53413
70 mmx 105 mmx27 mm
53311
70 mmx 105 mmx27 mm
53326XU
70 mmx 105 mmx27 mm
53226XU
70 mmx 105 mmx27 mm
53424XU
70 mmx 105 mmx27 mm
53324XU
70 mmx 105 mmx27 mm
53224U
70 mmx 105 mmx27 mm
53422XU
70 mmx 105 mmx27 mm
53322XU
70 mmx 105 mmx27 mm
53222U
70 mmx 105 mmx27 mm
