FAG 591/800-MP Thrust ball bearings
Also known as : 591/800-MP
- Inside Diameter: 800 mm
- Outside Diameter: 950 mm
- Width: 90 mm
- Basic dynamic load rating: 750 kN
- Basic static load rating: 5900 kN
FAG 591/800-MP
FAG 591/800-MP details

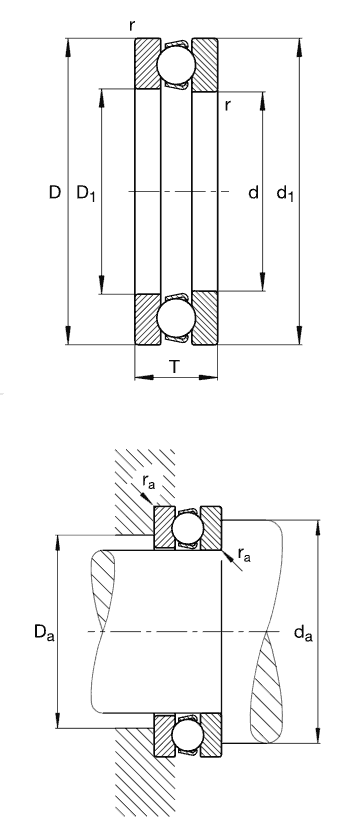

| Number | 591/800-MP | |
|---|---|---|
| Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, single direction, separable |
|
| d | 800mm | |
| D | 950mm | |
| T | 90mm | |
| D1 | 805mm | |
| Da max | 860mm | |
| d1 | 945mm | |
| da min | 890mm | |
| ra max | 3mm | |
| rmin | 4mm | |
| m | 120kg | Mass |
| Ca | 750000N | Basic dynamic load rating, axial |
| C0a | 5900000N | Basic static load rating, axial |
| Cua | 91000N | Fatigue limit load, axial |
| nG | 5401/min | Limiting speed |
| A | 200,3 | Minimum load factor |
FAG 591/800-MP bearing cross reference
D17-A1
800 mmx 950 mmx90 mm
53413
800 mmx 950 mmx90 mm
53311
800 mmx 950 mmx90 mm
53326XU
800 mmx 950 mmx90 mm
53226XU
800 mmx 950 mmx90 mm
53424XU
800 mmx 950 mmx90 mm
53324XU
800 mmx 950 mmx90 mm
53224U
800 mmx 950 mmx90 mm
53422XU
800 mmx 950 mmx90 mm
53322XU
800 mmx 950 mmx90 mm
53222U
800 mmx 950 mmx90 mm
