FAG 51406 Thrust ball bearings
Also known as : 51406
- Inside Diameter: 30 mm
- Outside Diameter: 70 mm
- Width: 28 mm
- Basic dynamic load rating: 70 kN
- Basic static load rating: 112 kN
FAG 51406
FAG 51406 details

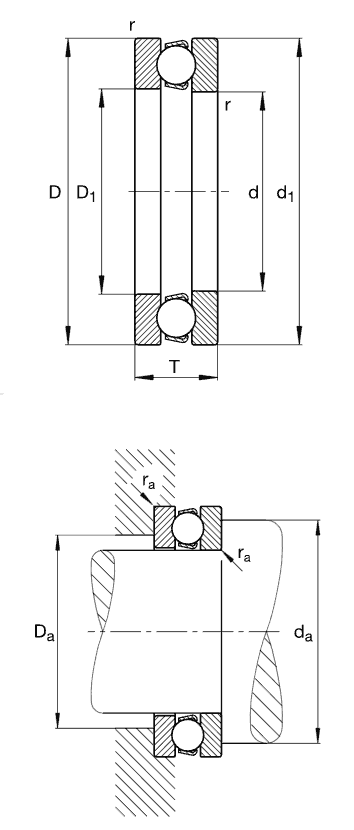

| Number | 51406 | |
|---|---|---|
| Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, single direction, separable |
|
| d | 30mm | |
| D | 70mm | |
| T | 28mm | |
| D1 | 32mm | |
| Da max | 46mm | |
| d1 | 70mm | |
| da min | 54mm | |
| ra max | 1mm | |
| rmin | 1mm | |
| m | 0,49kg | Mass |
| Ca | 70000N | Basic dynamic load rating, axial |
| C0a | 112000N | Basic static load rating, axial |
| Cua | 5200N | Fatigue limit load, axial |
| nG | 38501/min | Limiting speed |
| nϑr | 91001/min | Reference speed |
| A | 0,077 | Minimum load factor |
FAG 51406 bearing cross reference
D17-A1
30 mmx 70 mmx28 mm
53413
30 mmx 70 mmx28 mm
53311
30 mmx 70 mmx28 mm
53326XU
30 mmx 70 mmx28 mm
53226XU
30 mmx 70 mmx28 mm
53424XU
30 mmx 70 mmx28 mm
53324XU
30 mmx 70 mmx28 mm
53224U
30 mmx 70 mmx28 mm
53422XU
30 mmx 70 mmx28 mm
53322XU
30 mmx 70 mmx28 mm
53222U
30 mmx 70 mmx28 mm
