FAG 53338-MP+U338 Thrust ball bearings
Also known as : 53338-MP+U338
- Inside Diameter: 190 mm
- Outside Diameter: 330 mm
- Width: 121 mm
- Basic dynamic load rating: 590 kN
- Basic static load rating: 2170 kN
FAG 53338-MP+U338
FAG 53338-MP+U338 details

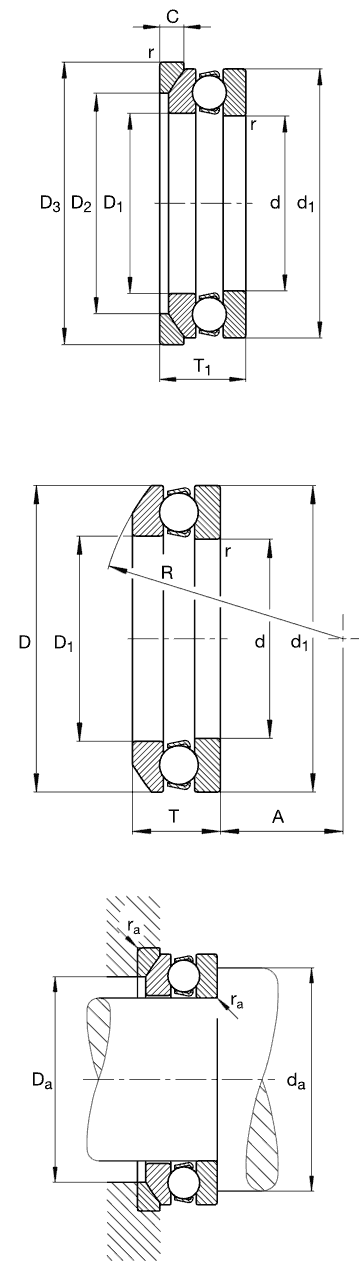

| Number | 53338-MP+U338 | |
|---|---|---|
| Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer and seating washer, separable |
|
| d | 190mm | |
| D3 | 330mm | |
| T1 | 121mm | |
| A | 104mm | |
| C | 33mm | |
| D | 320mm | |
| D1 | 195mm | |
| D2 | 255mm | |
| Da max | 255mm | |
| d1 | 315mm | |
| da min | 268mm | |
| R | 250mm | |
| ra max | 3mm | |
| rmin | 4mm | |
| T | 111mm | |
| U338 | Designation, seating washer | |
| m | 36,5kg | Mass |
| m1 | 6,16kg | Mass, seating washer |
| Ca | 590000N | Basic dynamic load rating, axial |
| C0a | 2170000N | Basic static load rating, axial |
| Cua | 63000N | Fatigue limit load, axial |
| nG | 10401/min | Limiting speed |
| nϑr | 18401/min | Reference speed |
| A | 24 | Minimum load factor |
