FAG 53334-MP+U334 Thrust ball bearings
Also known as : 53334-MP+U334
- Inside Diameter: 170 mm
- Outside Diameter: 290 mm
- Width: 100 mm
- Basic dynamic load rating: 440 kN
- Basic static load rating: 1560 kN
FAG 53334-MP+U334
FAG 53334-MP+U334 details

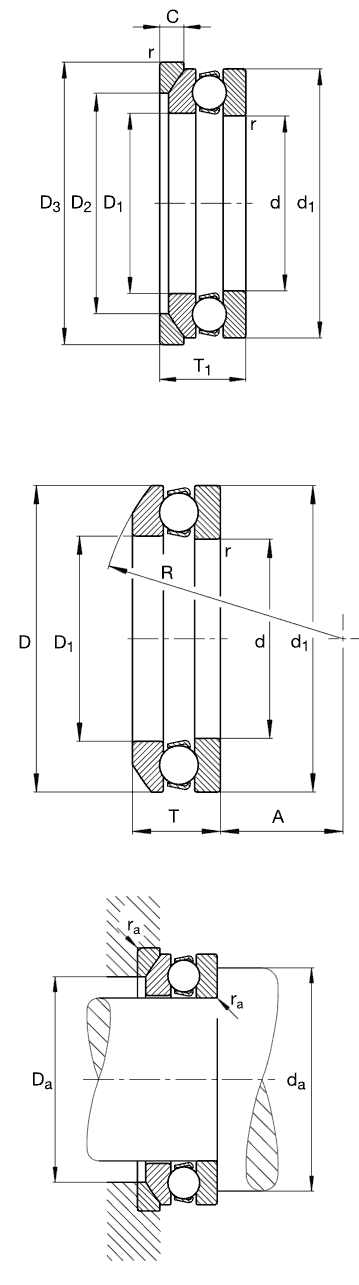

| Number | 53334-MP+U334 | |
|---|---|---|
| Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer and seating washer, separable |
|
| d | 170mm | |
| D3 | 290mm | |
| T1 | 100mm | |
| A | 105mm | |
| C | 29mm | |
| D | 280mm | |
| D1 | 174mm | |
| D2 | 220mm | |
| Da max | 220mm | |
| d1 | 275mm | |
| da min | 236mm | |
| R | 225mm | |
| ra max | 2,5mm | |
| rmin | 3mm | |
| T | 91,3mm | |
| U334 | Designation, seating washer | |
| m | 21,6kg | Mass |
| m1 | 4,42kg | Mass, seating washer |
| Ca | 440000N | Basic dynamic load rating, axial |
| C0a | 1560000N | Basic static load rating, axial |
| Cua | 47500N | Fatigue limit load, axial |
| nG | 12201/min | Limiting speed |
| nϑr | 21701/min | Reference speed |
| A | 13 | Minimum load factor |
