FAG 53210 Thrust ball bearings
Also known as : 53210
- Inside Diameter: 50 mm
- Outside Diameter: 78 mm
- Width: 23.5 mm
- Basic dynamic load rating: 50 kN
- Basic static load rating: 106 kN
FAG 53210
FAG 53210 details

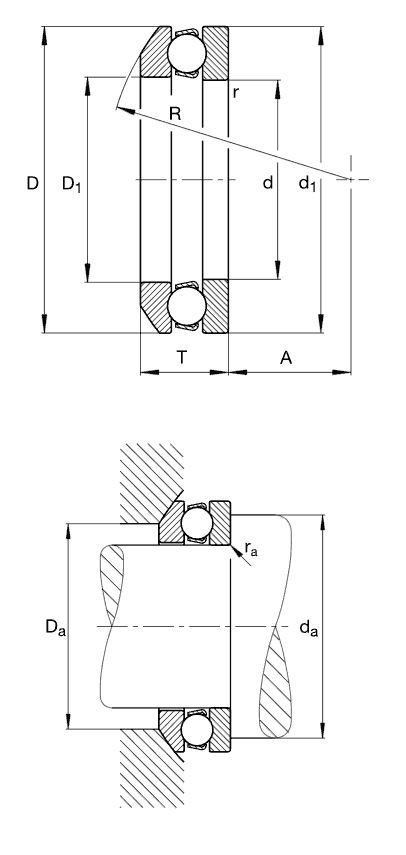

| Number | 53210 | |
|---|---|---|
| Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer, separable |
|
| d | 50mm | |
| D | 78mm | |
| T | 23,5mm | |
| A | 32,5mm | |
| D1 | 52mm | |
| Da max | 62mm | |
| d1 | 78mm | |
| da min | 67mm | |
| R | 64mm | |
| ra max | 1mm | |
| rmin | 1mm | |
| m | 0,341kg | Mass |
| Ca | 50000N | Basic dynamic load rating, axial |
| C0a | 106000N | Basic static load rating, axial |
| Cua | 4850N | Fatigue limit load, axial |
| nG | 49501/min | Limiting speed |
| nϑr | 57001/min | Reference speed |
| A | 0,069 | Minimum load factor |
