FAG 53208 Thrust ball bearings
Also known as : 53208
- Inside Diameter: 40 mm
- Outside Diameter: 68 mm
- Width: 20.3 mm
- Basic dynamic load rating: 44 kN
- Basic static load rating: 97 kN
FAG 53208
FAG 53208 details
| Number | 53208 | |
|---|---|---|
| Type |

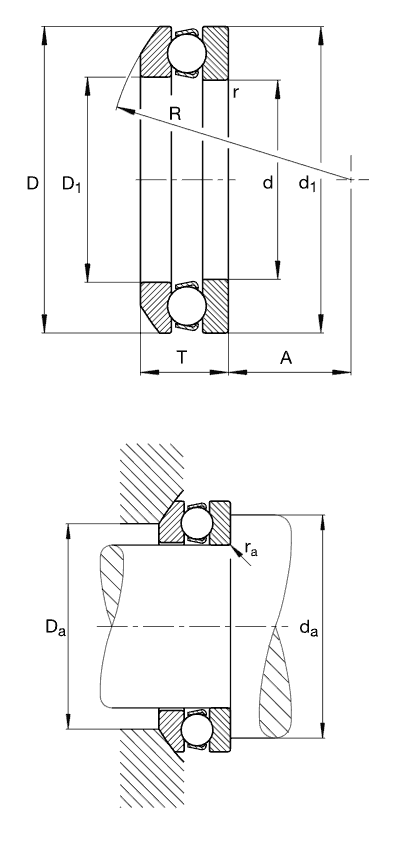

Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, single direction, with spherical housing locating washer, separable |
|
| d | 40mm | |
| D | 68mm | |
| T | 20,3mm | |
| A | 28,5mm | |
| D1 | 42mm | |
| Da max | 55mm | |
| d1 | 68mm | |
| da min | 57mm | |
| R | 56mm | |
| ra max | 1mm | |
| rmin | 1mm | |
| m | 0,259kg | Mass |
| Ca | 44000N | Basic dynamic load rating, axial |
| C0a | 97000N | Basic static load rating, axial |
| Cua | 4400N | Fatigue limit load, axial |
| nG | 55001/min | Limiting speed |
| nϑr | 69001/min | Reference speed |
| A | 0,05 | Minimum load factor |
FAG 53208 bearing cross reference
D17-A1
40 mmx 68 mmx20.3 mm
53413
40 mmx 68 mmx20.3 mm
53311
40 mmx 68 mmx20.3 mm
53326XU
40 mmx 68 mmx20.3 mm
53226XU
40 mmx 68 mmx20.3 mm
53424XU
40 mmx 68 mmx20.3 mm
53324XU
40 mmx 68 mmx20.3 mm
53224U
40 mmx 68 mmx20.3 mm
53422XU
40 mmx 68 mmx20.3 mm
53322XU
40 mmx 68 mmx20.3 mm
53222U
40 mmx 68 mmx20.3 mm
