FAG 52317 Thrust ball bearings
Also known as : 52317
- Inside Diameter: 70 mm
- Outside Diameter: 150 mm
- Width: 87 mm
- Basic dynamic load rating: 186 kN
- Basic static load rating: 420 kN
FAG 52317
FAG 52317 details

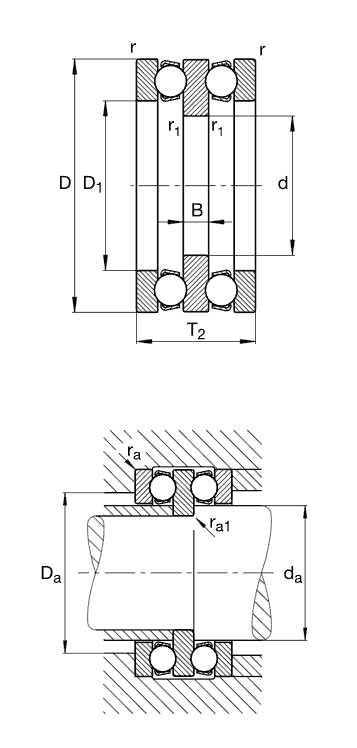

| Number | 52317 | |
|---|---|---|
| Type |
Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, double direction, separable |
|
| d | 70mm | |
| D | 150mm | |
| T2 | 87mm | |
| B | 19mm | |
| D1 | 88mm | |
| Da max | 111mm | |
| da max | 85mm | |
| r1 min | 1mm | |
| ra max | 1,5mm | |
| ra1 max | 1mm | |
| rmin | 1,5mm | |
| m | 6,2kg | Mass |
| Ca | 186000N | Basic dynamic load rating, axial |
| C0a | 420000N | Basic static load rating, axial |
| Cua | 17700N | Fatigue limit load, axial |
| nG | 22601/min | Limiting speed |
| nϑr | 41501/min | Reference speed |
| A | 1,1 | Minimum load factor |
