FAG 52305 Thrust ball bearings
Also known as : 52305
- Inside Diameter: 20 mm
- Outside Diameter: 52 mm
- Width: 34 mm
- Basic dynamic load rating: 34.5 kN
- Basic static load rating: 55 kN
FAG 52305
FAG 52305 details
| Number | 52305 | |
|---|---|---|
| Type |

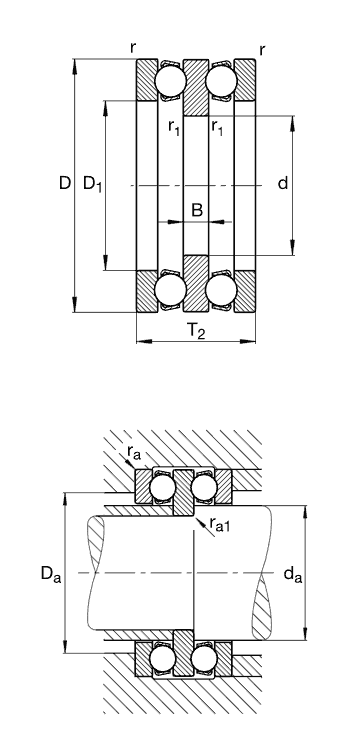

Axial deep groove ball bearings main dimensions to DIN 711/ISO 104, double direction, separable |
|
| d | 20mm | |
| D | 52mm | |
| T2 | 34mm | |
| B | 8mm | |
| D1 | 27mm | |
| Da max | 36mm | |
| da max | 25mm | |
| r1 min | 0,3mm | |
| ra max | 1mm | |
| ra1 max | 0,3mm | |
| rmin | 1mm | |
| m | 0,29kg | Mass |
| Ca | 34500N | Basic dynamic load rating, axial |
| C0a | 55000N | Basic static load rating, axial |
| Cua | 2500N | Fatigue limit load, axial |
| nG | 60001/min | Limiting speed |
| nϑr | 97001/min | Reference speed |
| A | 0,019 | Minimum load factor |
FAG 52305 bearing cross reference
D17-A1
20 mmx 52 mmx34 mm
53413
20 mmx 52 mmx34 mm
53311
20 mmx 52 mmx34 mm
53326XU
20 mmx 52 mmx34 mm
53226XU
20 mmx 52 mmx34 mm
53424XU
20 mmx 52 mmx34 mm
53324XU
20 mmx 52 mmx34 mm
53224U
20 mmx 52 mmx34 mm
53422XU
20 mmx 52 mmx34 mm
53322XU
20 mmx 52 mmx34 mm
53222U
20 mmx 52 mmx34 mm
