SKF 53207+U207 Thrust ball bearings
Also known as : 53207+U207, 53207XU
- Inside Diameter: 35 mm
- Outside Diameter: 62 mm
- Width: 19.9 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 73.5 kN
SKF 53207+U207

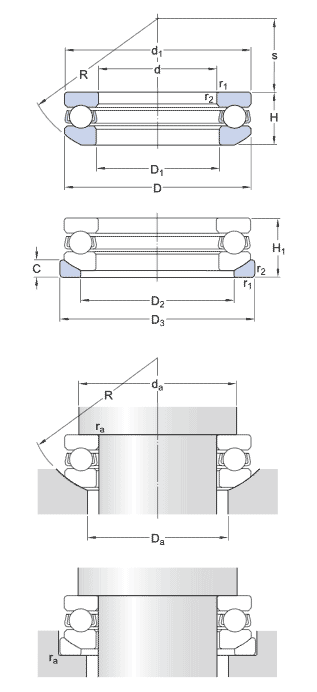

SKF 53207+U207 details
| model | 53207+U207 |
|---|---|
| d | 35 mm |
| D | 62 mm |
| H | 19.9 mm |
| H1 | 22 mm |
| d1 ≈ | 62 mm |
| D1 ≈ | 37 mm |
| D2 | 48 mm |
| D3 | 65 mm |
| C | 7 mm |
| R | 50 mm |
| s | 24 mm |
| r1,2 min. | 1 mm |
| da min. | 51 mm |
| Da max. | 48 mm |
| ra max. | 1 mm |
| Calculation data | |
| C | 35.1 kN, Basic dynamic load rating |
| C0 | 73.5 kN, Basic static load rating |
| Pu | 2.7 kN, Fatigue load limit |
| Reference speed | 4000 r/min |
| Limiting speed | 5600 r/min |
| A | 0.028, Minimum load factor |
| Mass | 0.28 kg |
SKF 53207+U207 bearing cross reference
D17-A1
35 mmx 62 mmx19.9 mm
53413
35 mmx 62 mmx19.9 mm
53311
35 mmx 62 mmx19.9 mm
53326XU
35 mmx 62 mmx19.9 mm
53226XU
35 mmx 62 mmx19.9 mm
53424XU
35 mmx 62 mmx19.9 mm
53324XU
35 mmx 62 mmx19.9 mm
53224U
35 mmx 62 mmx19.9 mm
53422XU
35 mmx 62 mmx19.9 mm
53322XU
35 mmx 62 mmx19.9 mm
53222U
35 mmx 62 mmx19.9 mm
