SKF 52215 Thrust ball bearings
Also known as : 52215
- Inside Diameter: 60 mm
- Outside Diameter: 110 mm
- Width: 47 mm
- Basic dynamic load rating: 63.7 kN
- Basic static load rating: 170 kN
SKF 52215

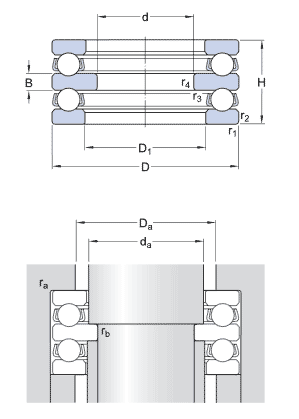

SKF 52215 details
| model | 52215 |
|---|---|
| d | 60 mm |
| D | 110 mm |
| H | 47 mm |
| D1 ≈ | 77 mm |
| B | 10 mm |
| r1,2 min. | 1 mm |
| r3,4 min. | 1 mm |
| da | 75 mm |
| Da max. | 89 mm |
| ra max. | 1 mm |
| rb max. | 1 mm |
| Calculation data | |
| C | 63.7 kN, Basic dynamic load rating |
| C0 | 170 kN, Basic static load rating |
| Pu | 6.2 kN, Fatigue load limit |
| Reference speed | 1900 r/min |
| Limiting speed | 2600 r/min |
| A | 0.17, Minimum load factor |
| Mass | 1.55 kg |
SKF 52215 bearing cross reference
D17-A1
60 mmx 110 mmx47 mm
53413
60 mmx 110 mmx47 mm
53311
60 mmx 110 mmx47 mm
53326XU
60 mmx 110 mmx47 mm
53226XU
60 mmx 110 mmx47 mm
53424XU
60 mmx 110 mmx47 mm
53324XU
60 mmx 110 mmx47 mm
53224U
60 mmx 110 mmx47 mm
53422XU
60 mmx 110 mmx47 mm
53322XU
60 mmx 110 mmx47 mm
53222U
60 mmx 110 mmx47 mm
