SKF 52207 Thrust ball bearings
Also known as : 52207
- Inside Diameter: 30 mm
- Outside Diameter: 62 mm
- Width: 34 mm
- Basic dynamic load rating: 35.1 kN
- Basic static load rating: 73.5 kN
SKF 52207

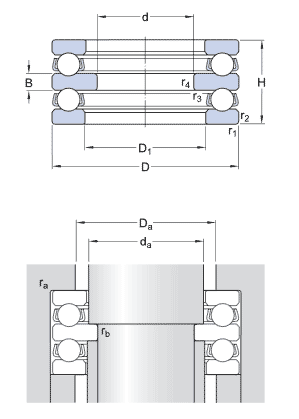

SKF 52207 details
| model | 52207 |
|---|---|
| d | 30 mm |
| D | 62 mm |
| H | 34 mm |
| D1 ≈ | 37 mm |
| B | 8 mm |
| r1,2 min. | 1 mm |
| r3,4 min. | 0.3 mm |
| da | 35 mm |
| Da max. | 46 mm |
| ra max. | 1 mm |
| rb max. | 0.3 mm |
| Calculation data | |
| C | 35.1 kN, Basic dynamic load rating |
| C0 | 73.5 kN, Basic static load rating |
| Pu | 2.7 kN, Fatigue load limit |
| Reference speed | 3000 r/min |
| Limiting speed | 4300 r/min |
| A | 0.028, Minimum load factor |
| Mass | 0.41 kg |
SKF 52207 bearing cross reference
D17-A1
30 mmx 62 mmx34 mm
53413
30 mmx 62 mmx34 mm
53311
30 mmx 62 mmx34 mm
53326XU
30 mmx 62 mmx34 mm
53226XU
30 mmx 62 mmx34 mm
53424XU
30 mmx 62 mmx34 mm
53324XU
30 mmx 62 mmx34 mm
53224U
30 mmx 62 mmx34 mm
53422XU
30 mmx 62 mmx34 mm
53322XU
30 mmx 62 mmx34 mm
53222U
30 mmx 62 mmx34 mm
