SKF 51305

SKF 51305 Thrust ball bearings

Also known as : 51305

Inside Diameter: 25 mm
Outside Diameter: 52 mm
Width: 18 mm
Basic dynamic load rating: 34.5 kN
Basic static load rating: 60 kN

SKF 51305

SKF 51305 details

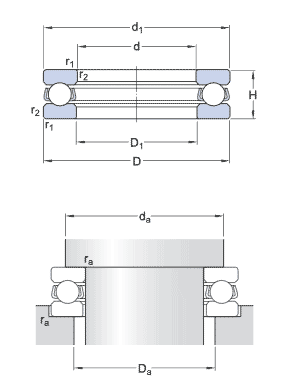

model	51305
d	25 mm
D	52 mm
H	18 mm
d₁ ≈	52 mm
D₁ ≈	27 mm
r_{1,2 min.}	1 mm
d_{a min.}	41 mm
D_{a max.}	36 mm
r_{a max.}	1 mm
Calculation data
C	34.5 kN, Basic dynamic load rating
C₀	60 kN, Basic static load rating
P_u	2.24 kN, Fatigue load limit
Reference speed	4500 r/min
Limiting speed	6300 r/min
Mass	0.17 kg

SKF 51305 bearing cross reference

D17-A1
25 mmx 52 mmx18 mm

53413
25 mmx 52 mmx18 mm

53311
25 mmx 52 mmx18 mm

53326XU
25 mmx 52 mmx18 mm

53226XU
25 mmx 52 mmx18 mm

53424XU
25 mmx 52 mmx18 mm

53324XU
25 mmx 52 mmx18 mm

53224U
25 mmx 52 mmx18 mm

53422XU
25 mmx 52 mmx18 mm

53322XU
25 mmx 52 mmx18 mm

53222U
25 mmx 52 mmx18 mm

53420XU
25 mmx 52 mmx18 mm
