SKF 51240M

SKF 51240M Thrust ball bearings

Also known as : 51240M

Inside Diameter: 200 mm
Outside Diameter: 280 mm
Width: 62 mm
Basic dynamic load rating: 338 kN
Basic static load rating: 1320 kN

SKF 51240M

SKF 51240M details

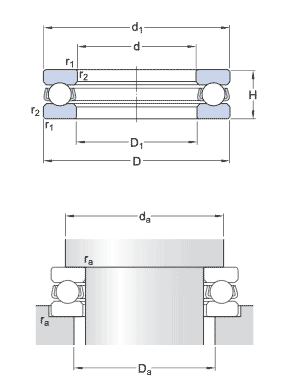

model	51240M
d	200 mm
D	280 mm
H	62 mm
d₁ ≈	275 mm
D₁ ≈	204 mm
r_{1,2 min.}	2 mm
d_{a min.}	248 mm
D_{a max.}	232 mm
r_{a max.}	2 mm
Calculation data
C	338 kN, Basic dynamic load rating
C₀	1320 kN, Basic static load rating
P_u	31.5 kN, Fatigue load limit
Reference speed	1100 r/min
Limiting speed	1500 r/min
Mass	12 kg

SKF 51240M bearing cross reference

D17-A1
200 mmx 280 mmx62 mm

53413
200 mmx 280 mmx62 mm

53311
200 mmx 280 mmx62 mm

53326XU
200 mmx 280 mmx62 mm

53226XU
200 mmx 280 mmx62 mm

53424XU
200 mmx 280 mmx62 mm

53324XU
200 mmx 280 mmx62 mm

53224U
200 mmx 280 mmx62 mm

53422XU
200 mmx 280 mmx62 mm

53322XU
200 mmx 280 mmx62 mm

53222U
200 mmx 280 mmx62 mm

53420XU
200 mmx 280 mmx62 mm
